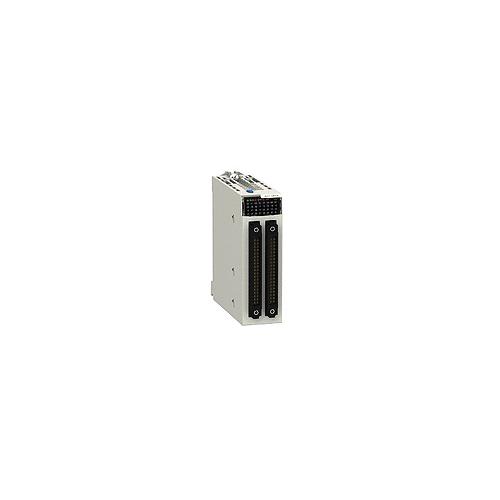

Square D™ BMXART0814 Analog Input Module, 8 Inputs, 15 bit Resolution
Sku #59586396679
MFG #BMXART0814
Attributes
| Number of Inputs: | 8 |
| Amperage Rating: | 150 mA |
| Country of Origin: | FR |
| Resolution: | 15 bit |
| Temperature Rating: | 0 to 60 deg C |
- ECCN|PROP65|REACH|EAR99|WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Two connectors 40 ways electrical connection
- Isolated input output isolation
- Low level input
- Sigma delta 16 bits analog/digital conversion
- 10 MOhm input impedance
- 120 dB 50/60 Hz common mode rejection
- 60 dB 50/60 Hz differential mode rejection
- External by Pt100 probe cold junction compensation
- First order digital filtering
- 200 ms with thermocouple, 400 ms with temperature probe nominal read cycle time
- Internal recalibration
- 1 LED green run, 1 LED per channel green channel diagnostic, 1 LED red ERR, 1 LED red input/output status LED
- 10 to 95% without condensation relative humidity
- IP20 deg of protection
- TC protective treatment
