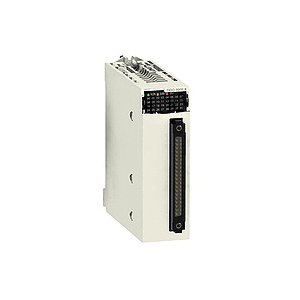

Square D™ Modicon M340 BMXDDO3202K Discrete PLC Output Digital Module, 32 Outputs
Sku #59586391047
MFG #BMXDDO3202K
Attributes
| Type: | Discrete |
| Voltage Rating: | 24 V DC |
| Temperature Rating: | 0 to 60 deg C |
| Number of Outputs: | 32 |
| Amperage Rating: | 1 mA |
| Country of Origin: | ID |
- 40-way connector electrical connection
- Solid state positive output logic
- <=0.125 A current per channel
- <=3.2 A current per module
- <=0.1 mA at state 0 leakage current
- <=1.5 V at state 1 residual voltage
- >10 MOhm at 500 VDC insulation resistance
- <=3.6 W power dissipation
- 1.2 ms response time on output
- Three maximum paralleling of outputs
- 150 mA at 3.3 VDC typical current consumption
- External short circuit protection, overload protection, overvoltage protection and reverse polarity protection
- With electronic circuit breaker 1.5 in 18 VDC pre-actuator at state 0 voltage detection threshold
- <=1.2 W tungsten load
- 0.5/sq LI Hz switching frequency
- <=220 Ohm load impedance
- https://www.youtube.com/watch?v=Vyks2frAhbo
- UL 508, 746C|CSA C22.2 No 142|IEC 1131-2|IEC 664, NF C 63-850
