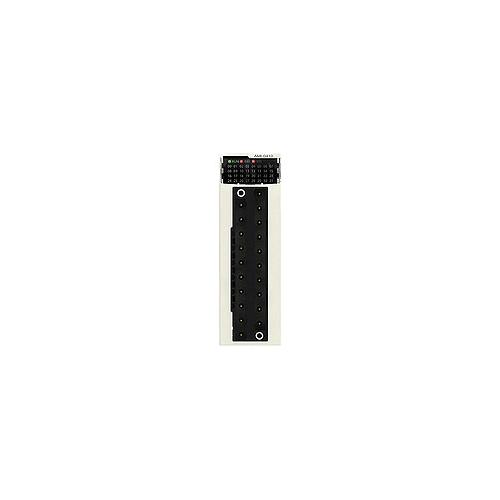

Square D™ BMXAMI0410 Analog Input Module, 4 Inputs, 16 bit Resolution
Sku #59586391017
MFG #BMXAMI0410
Attributes
| Number of Inputs: | 4 |
| Resolution: | 16 bit |
| Temperature Rating: | 0 to 60 deg C |
| Conversion Rate: | 24 bit |
| Amperage Rating: | 150/45 mA |
| Country of Origin: | FR |
- One connector 20 ways electrical connection
- Isolated input output isolation
- High level input
- 10 MOhm input impedance
- 250 Ohm internal conversion resistor
- 0.1% - 15 ppm/deg C precision of internal conversion resistor
- First order digital filtering
- 1 ms + 1 ms x number of channel used fast read cycle time
- 5 ms for 4 channel nominal read cycle time
- Internal recalibration
- 120 dB common mode between channel
- +/-10000 by default, +/-32000 in user scale digital value format
- 300 VDC between channel, 1400 VDC between channel and ground, 1400 VDC between channel and bus isolation voltage
- 1 LED green run, 1 LED per channel green channel diagnostic, 1 LED red ERR, 1 LED red input/output status LED
- 10 to 95% without condensation relative humidity
- IP20 deg of protection
- TC protective treatment
