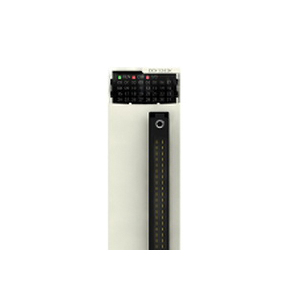

Square D™ Modicon M340 BMXDDI3202K Discrete PLC Input Digital Module, 32 Inputs
Sku #59586391001
MFG #BMXDDI3202K
Attributes
| Type: | Discrete |
| Voltage Rating: | 24 V DC |
| Temperature Rating: | 0 to 60 deg C |
| Number of Inputs: | 32 |
| Amperage Rating: | 2.5 mA |
| Country of Origin: | ID |
- 40-way connector electrical connection
- Current sink (logic positive) input
- With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 input compatibility
- 9600 Ohm input impedance
- >10 MOhm at 500 VDC insulation resistance
- <=3.9 W power dissipation
- 4 ms DC typical filtering time
- 7 ms DC maximum filtering time
- No paralleling of inputs
- 140 mA at 3.3 VDC typical current consumption
- 696320 H MTBF reliability
- 1 external fuse per group of channel 0.5 A fast blow protection
- <14 VDC sensor fault/>18 VDC sensor OK voltage detection threshold
- IP20 deg of protection
- 1500 VAC at 50/60 Hz 1 min, primary/secondary dielectric strength
- 10 to 95% without condensation relative humidity
- TC protective treatment
- 1 LED green module operating (RUN)/1 LED per channel green channel diagnostic/1 LED red module I/O/1 LED red module error (ERR)
- https://www.youtube.com/watch?v=Vyks2frAhbo
- UL 508, 746C|CSA C22.2 No 142|IEC 1131-2|IEC 664, NF C 63-850
