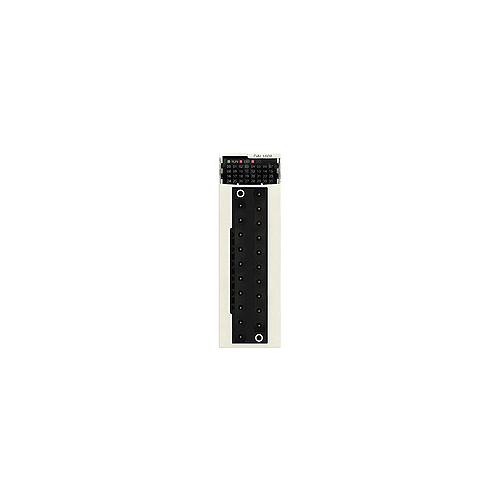

Square D™ Modicon M340 BMXDRA1605 Discrete PLC Output Digital Module, 16 Outputs
Sku #59586390923
MFG #BMXDRA1605
Attributes
| Type: | Discrete |
| Voltage Rating: | 24 V DC |
| Country of Origin: | FR |
| Number of Outputs: | 16 |
| Temperature Rating: | 0 to 60 deg C |
- 20-way connector electrical connection
- Relay discrete output
- 2 A conventional free air thermal current
- >10 MOhm at 500 VDC insulation resistance
- <=3 W power dissipation
- <=10 ms activation/<=12 ms deactivation response time on output
- 100 mA at 3.3 VDC typical current consumption
- 2463296 H MTBF reliability
- AC inductive overvoltage protection, DC inductive overvoltage protection, external overload protection and external short circuit protection
- Use 1 fast blow fuse per channel or group of channel output overload protection and short circuit protection
- Use discharge diode on each output DC, RC circuit on each output AC and ZNO surge limiter on each output AC output overvoltage protection
- 1 mA at 5 VDC minimum switching current
- IP20 deg of protection
- 2000 VAC at 50/60 Hz 1 min dielectric strength
- 10 to 95% without condensation relative humidity
- TC protective treatment
- 1 LED green module operating (RUN)/1 LED per channel green channel diagnostic/1 LED red module I/O/1 LED red module error (ERR)
- https://www.youtube.com/watch?v=Vyks2frAhbo
- UL 508, 746C|CSA C22.2 No 142|IEC 1131-2|IEC 664, NF C 63-850
