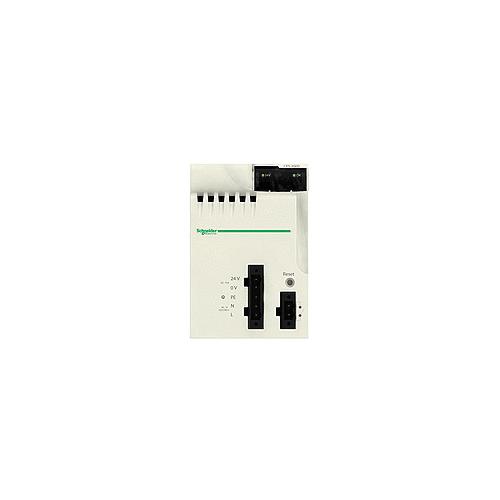

Square D™ BMXCPS3500 PLC Power Supply Module, 100 to 240 V AC Input, 24 VDC Output, 0.52/1.04 A Input, 0.9/1.3/4.5 A Output, 36 W
Sku #59586390897
MFG #BMXCPS3500
Attributes
| Input Voltage: | 100 to 240 V AC |
| Input Current: | 0.52/1.04 A |
| Power Consumption: | 36 W |
| Output Voltage: | 24 V DC |
| Output Current: | 0.9/1.3/4.5 A |
| Power Dissipation: | <=8.5 W |
- Not compatible with BMEXBP.02
- 15 W at 3.3 VDC input/output module logic power supply/21.6 W at 24 VDC sensor power supply/31.2 W at 24 VDC input/output module power supply and processor secondary power
- 47 to 63 Hz network frequency
- <=30 A at 120 V/<=60 A at 240 V inrush current
- Internal fuse not accessible primary circuit and overload/overvoltage/short circuit protection secondary circuit
- 1 LED green rack voltage OK and 1 LED green sensor voltage LED status
- RESET pushbutton cold restart control
- 1 connector 2 pin alarm relay and 1 connector 5 pin line supply, protective earth, 24 VDC input sensor electrical connection
- >=100 MOhm primary/ground and >=100 MOhm primary/secondary insulation resistance
- <=1 ms immunity to micro breaks
- IP20 deg of protection
- 10 to 95% without condensation relative humidity
- TC protective treatment
- 0.52 A at 240 VAC, 1.04 A at 115 VAC input current
- 0.9 A at 24 VDC sensor power supply/1.3 A at 24 VDC input/output module power supply and processor/4.5 A at 3.3 VDC input/output module logic power supply output current
- -40 to 185 deg F storage temperature
- https://www.youtube.com/watch?v=Vyks2frAhbo
- EN 61131-2|IEC 61131-2 Certified
