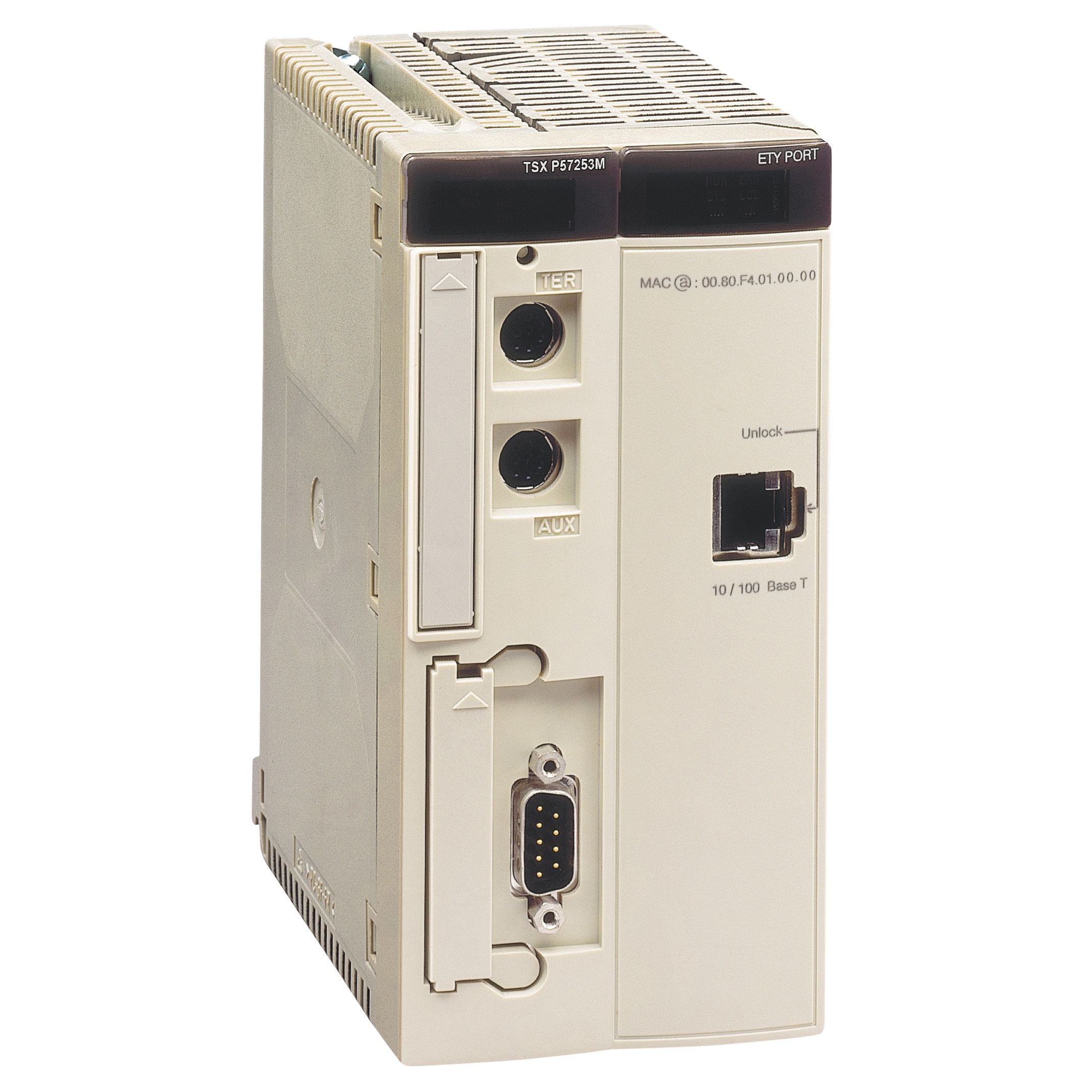

Schneider Electric TSXP57253M TSX Double-format PL7 processor
Sku #59586202378
MFG #TSXP57253M
Attributes
| Type: | Double-format PL7 processor |
| Communication Ports: | Fipio Manager SUB-D 9, Non-Isolated Serial Link 2-Female Mini DIN 19.2 kbps |
| Country of Origin: | FR |
| Series: | TSX |
| Operating Temperature: | 32 to 140 deg F |
- IEC languages as standard: LD, ST, FBD, SFC, IL. High performance CPUs with 37 ns per instruction and up to 7 Mb of programme
- High-level multitasking system
- A compact system (very high density modules) particularly at ease in extended architectures (distribution of 16 racks in real time without repeater)
- An extensive catalogue of application-specific modules (safety, reflex processing, counter, position control, motion, weighing, data storage)
- All Ethernet TCP/IP Transparent Ready services: IO scanning, Global Data, Web server, e-mail messaging, direct access to databases, TCP Open, Network Time Protocol, etc
- Numerous built-in ports: USB port, Ethernet TCP/IP port with Web server, CANopen or FIP master port, Modbus serial port
- The widest connectivity offer on the market:AS-Interface, Modbus Plus, INTERBUS or PROFIBUS DP
- PL7 Junior/Pro software designation
- 9612864 number of slots
- 1024 I/O discrete i/o processor capacity
- 80 I/O analogue i/o processor capacity
- 24 number of application specific channel
- 10 up to 30 simple loops number of process control channel
- 1 fieldbus module ( if CANopen used)1 network module4 AS-Interface bus modules1 CANopen communication module processor capacity
- Internal RAM (with PCMCIA card) 64 Kwords dataInternal RAM (without PCMCIA card) 64 Kwords program and dataPCMCIA card 160 Kwords programPCMCIA card 2688 Kwords additional data storage memory description
- 30.5 %MWi internal words located internal data32 %KWi constant words located internal data8132 %Mi located internal bits maximum size of object areas
- 1 master task64 event tasks1 fast task application structure
- 0.19 s Boolean without PCMCIA card,0.21 s Boolean with PCMCIA card,0.25 s word or fixed-point arithmetic without PCMCIA card,0.42 s word or fixed-point arithmetic with PCMCIA card,2.6 s floating points with PCMCIA card,2.6 s floating points without PCMCIA card, execution time per instruction
- 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card,3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card,3.7 Kinst/ms 100 % Boolean with PCMCIA card,4.76 Kinst/ms 100 % Boolean without PCMCIA card, number of instructions per ms
- For PL7 processor - 820 mA 5 V DC Schneider Electric SQD TSXP57253M double-format
- GL|RINA|DNVLRABSBVRMRS|CSA C22.2 No 213 Class I Division 2 Group A|CSA C22.2 No 142IEC 61131-2|UL 50873/23/EEC89/336/EEC|CSA C22.2 No 213 Class I Division 2 Group C|CSA C22.2 No 213 Class I Division 2 Group B|CSA C22.2 No 213 Class I Division 2 Group D92/31/EEC93/68/EEC
