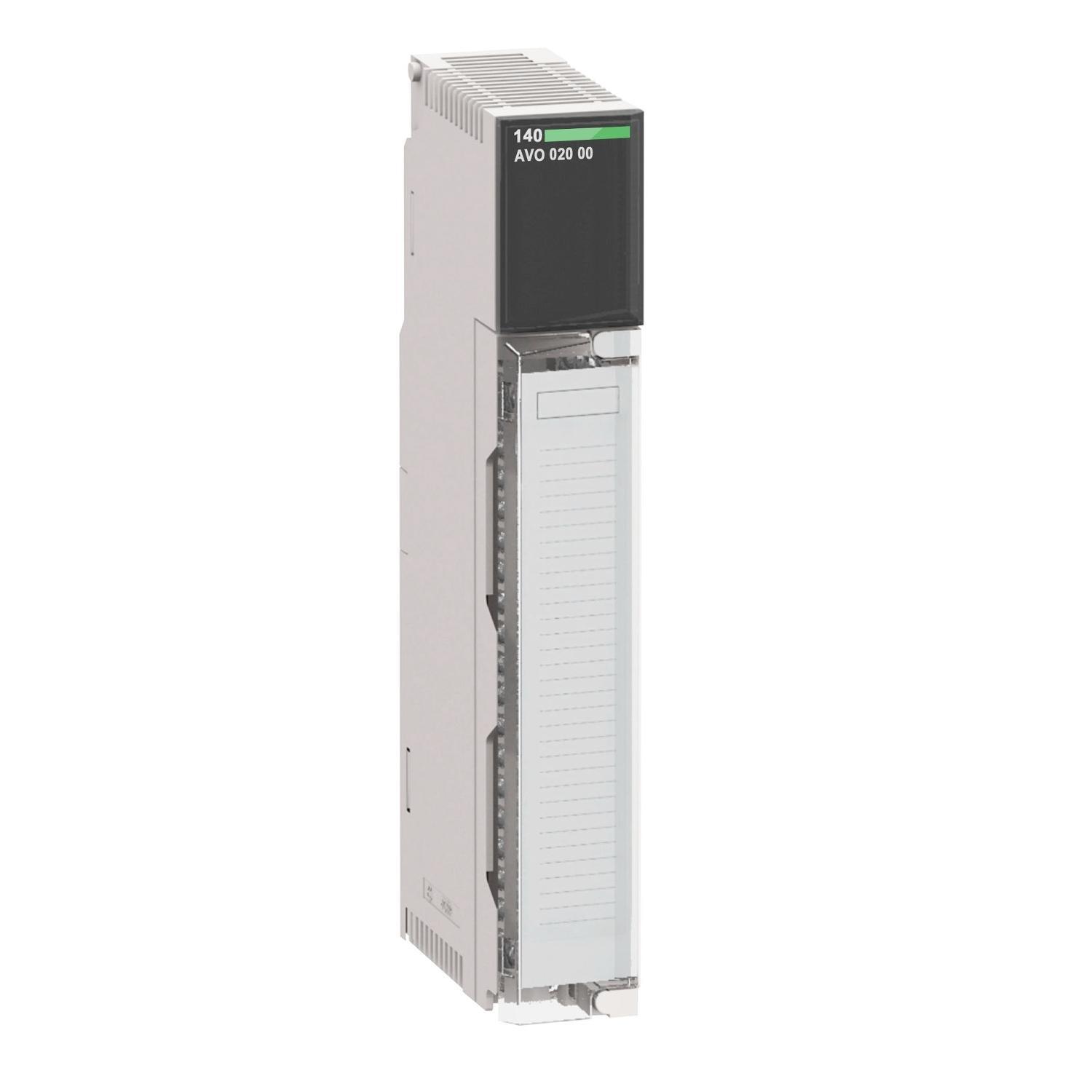

Schneider Electric Modicon™ Quantum™ Square D™ 140AVO02000 Analog Output Module, 4 Outputs, 12 bit Resolution
Sku #59586112662
MFG #140AVO02000
Attributes
| Number of Outputs: | 4 |
| Power Rating: | 4.5 W |
| Dimensions: | 400 m L |
| Resolution: | 12 bit |
| Temperature Rating: | 0 to 60 deg C |
- 4 output words addressing requirement
- -10 to 10 mA analog output current
- 0.1 Ohm source-resistance
- <=400 m L cable
- +/-0.15% of full scale at 25 deg C absolute accuracy error
- +/-1 LSB linearity
- 500 VAC for 1 min 47 to 63 Hz isolation between channel
- 780 V for 1 min AC isolation between channel and bus
- 3 ms update time
- 700 us to +/-0.1% of the final value maximum setting time
- 700 mA bus current requirement
- <=4.5 W power dissipation
- 0.063 mA 3 AG fast blow 250 V associated fuse rating
- Standard module format
- 10 V/m 80 to 2000 MHz conforming to IEC 801-3-resistance to electromagnetic field
- -40 to 85 deg C ambient air temperature for storage
- 95% without condensation relative humidity
- <=5000 m operating altitude
- 4 LED green channel is turned on, 4 LED red channel fault, 1 LED green bus communication is present (active), 1 LED red external fault
- +/-5 V, +/-10 V, 0 to 5 V or 0 to 10 V
- CE Certified|CSA C22.2 File No. 142|cUL Listed|FM Class 1 Division 2|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL 508
- Modicon Quantum Automation Platform Applications
