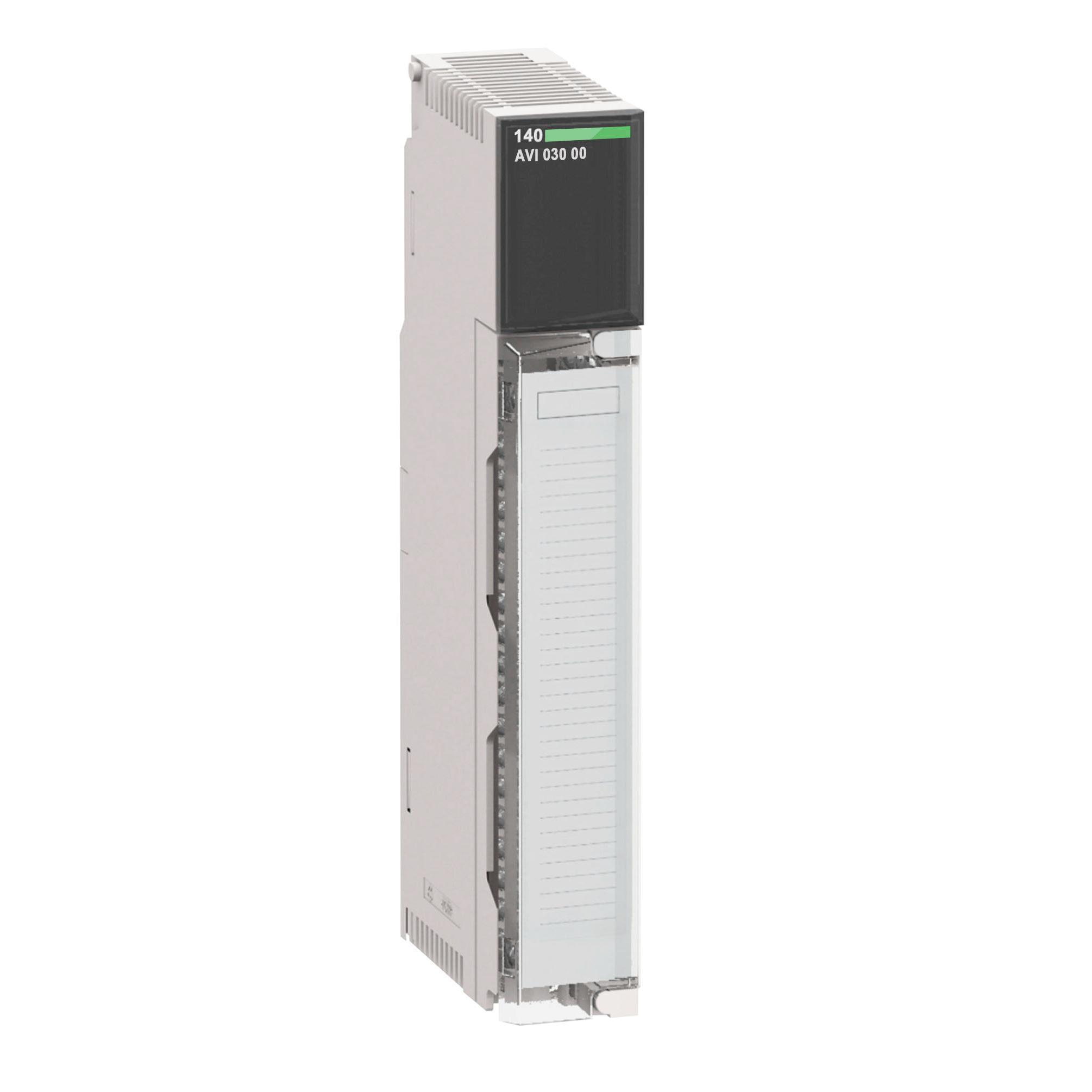

Schneider Electric Modicon™ Quantum™ Square D™ 140AVI03000 Bipolar Analog Input Module, 8 Inputs
Sku #59586112661
MFG #140AVI03000
Attributes
| Type: | Bipolar |
| Conversion Rate: | 16 bit |
| Temperature Rating: | 0 to 60 deg C |
| Number of Inputs: | 8 |
| Power Rating: | 2.2 W |
- Differential input
- 9 input words addressing requirement
- Linear measuring range is (input range) x 1.024 mA, (input range) x 1.024 V
- 25 mA, 50 VDC absolute maximum input
- >20 Ohm voltage, 250 MOhm +/-0.03% input impedance
- +/-0.03%, +/-0.05% of full scale maximum absolute accuracy error
- +/-0.008% linearity error
- +/-0.0015% of full scale/deg C, <=0.004% of full scale/deg C accuracy drift according to temperature
- >-80 dB 60 Hz common mode rejection
- 500 VRMs AC for 60 s, 750 VDC isolation between channel and bus
- 135 VRMs AC, 200 VDC isolation between channel
- 10 ms update time
- Broken wire 4 to 20 mA, over tacking scale 1 to 5 V fault type
- 280 mA bus current requirement
- 2.2 W power dissipation
- Standard module format
- 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2-resistance to electrostatic discharge
- 10 V/m 80 to 1000 MHz conforming to IEC 801-3-resistance to electromagnetic field
- -40 to 85 deg C ambient air temperature for storage
- 95% without condensation relative humidity
- Modicon Quantum Automation Platform Applications
- CE Certified|CSA C22.2 File No. 142|cUL Listed|FM Class 1 Division 2|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL 508
