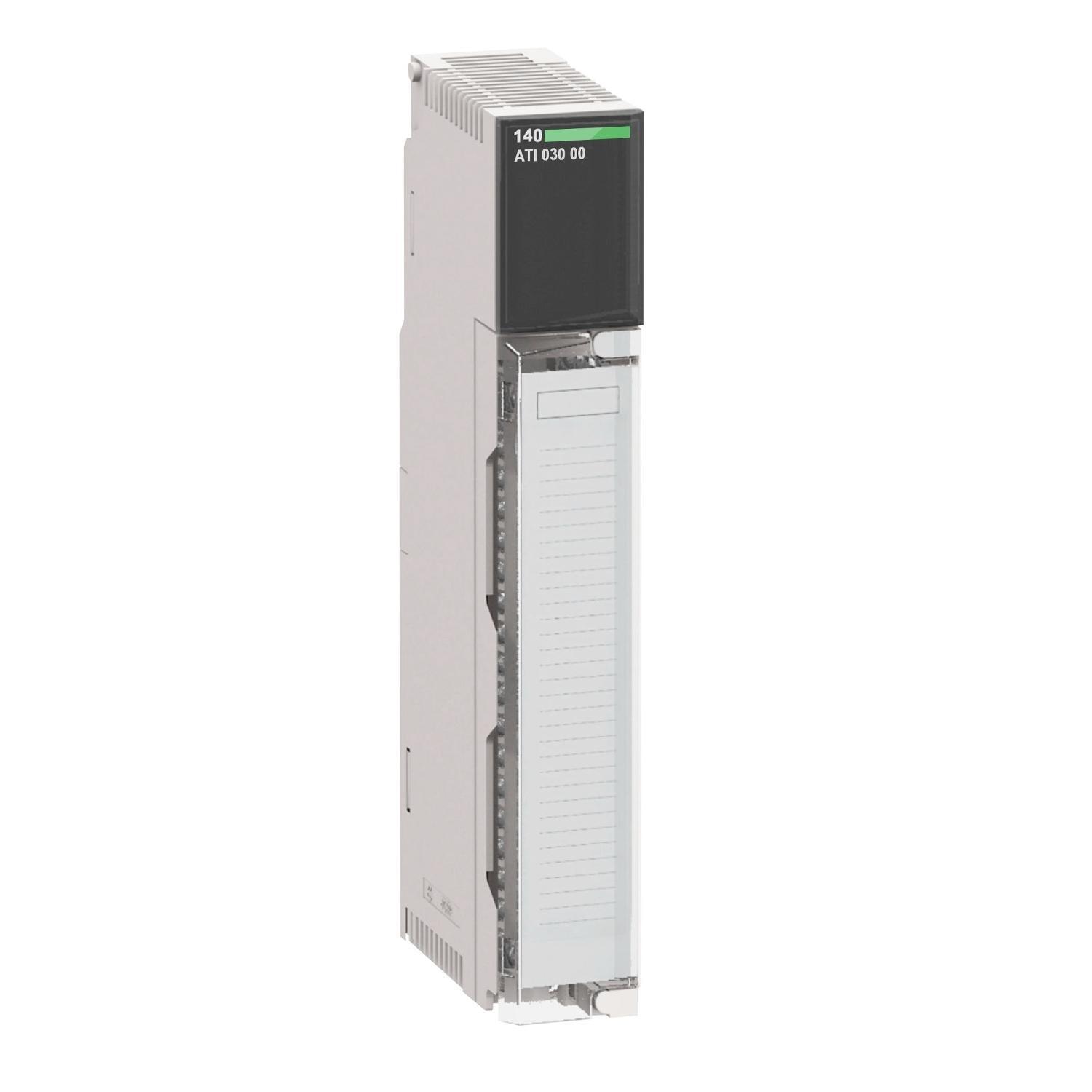

Schneider Electric Modicon® Quantum™ 140ATI03000 Analog Input Module, 8 Inputs, 16 bit Resolution
Sku #59586112660
MFG #140ATI03000
Attributes
| Number of Inputs: | 8 |
| Temperature Rating: | 0 to 60 deg C |
| Resolution: | 16 bit |
| Country of Origin: | FR |
- Notch filter 3 dB at 50/60 Hz, single pole low pass 3 dB at 20 Hz filter
- 10-input words addressing requirement
- >1 MOhm input impedance
- 0.15 UV/deg C +0.0015% of reading/deg C maximum low level voltage accuracy drift according to temperature
- >=120 dB 50/60 Hz common mode rejection
- 1780 VAC for 60 s, 2500 VDC for 60 s isolation between channel and bus
- 220 VAC, 300 VDC isolation between channel
- 1000 ms update time
- Broken wire, over tacking scale fault type
- Internal 0 to 60 deg C cold junction compensation
- 280 mA bus current requirement
- 1.5 W power consumption
- Standard module format
- 4 kV contacts conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 resistance to electrostatic discharge
- 10 V/m 80 to 1000 MHz conforming to IEC 801-3 resistance to electromagnetic fields
- -40 to 85 deg C ambient air temperature for storage
- 95% without condensation relative humidity
- <=5000 m operating altitude
- (1) LED green bus communication is present (active), (1) LED red external fault, 8 LEDs green channel is turned on, 8 LEDs red channel fault
- Thermocouple type B, E, J, K, R, S, T, MV
- Modicon® Quantum™ Automation Platform Applications
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Marked|FM Class 1 Div 2|CSA C22.2 No. 142|cUL Listed|UL 508|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
