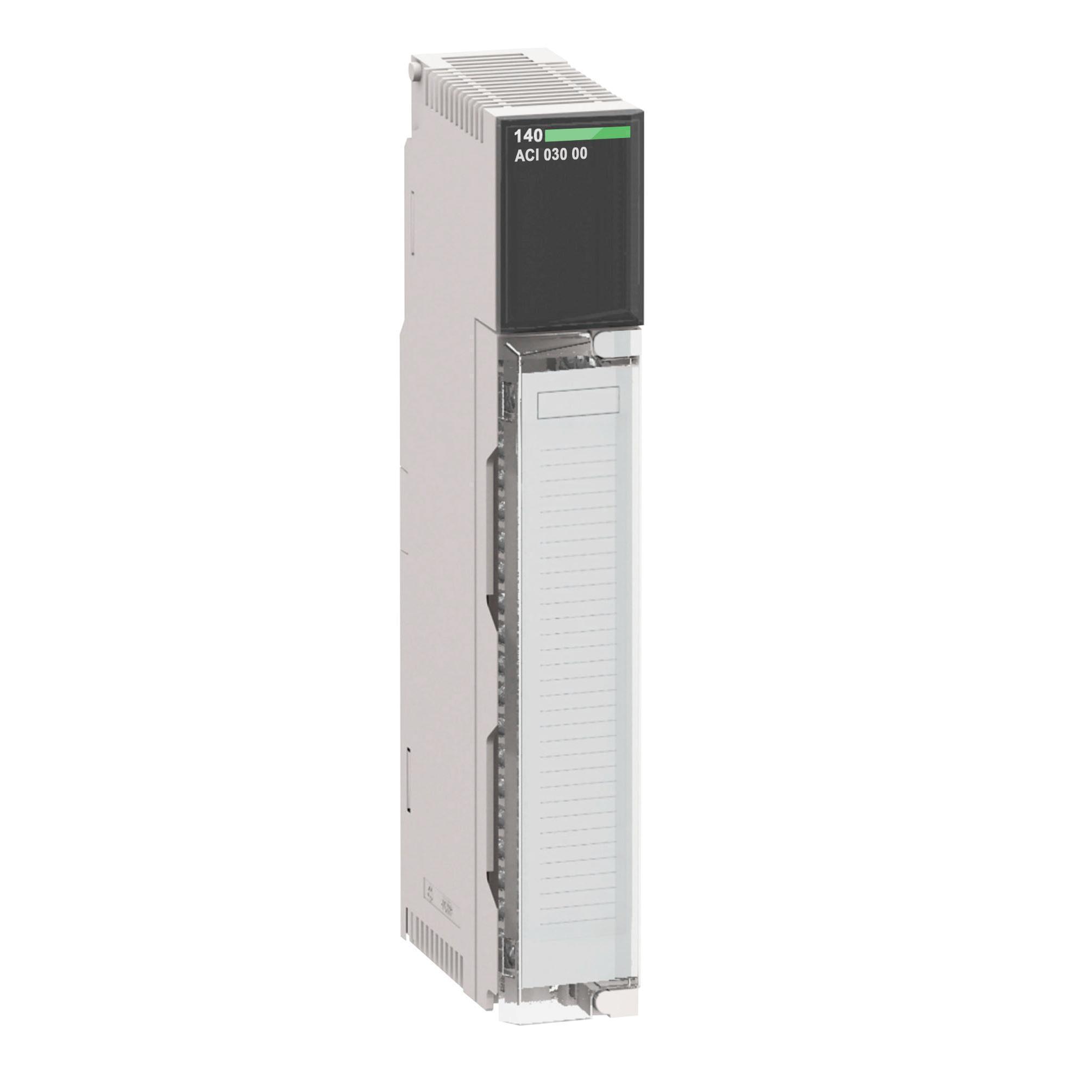

Schneider Electric 140ACI03000 Unipolar Analog Input Module, 8 Inputs, 1 LED Green Bus Communication is Present (Active) Signal Range, 12 bit Resolution
Sku #59586112656
MFG #140ACI03000
Attributes
| Type: | Unipolar |
| Signal Range: | 1 LED Green Bus Communication is Present (Active) |
| Temperature Rating: | 0 to 60 deg C |
| Number of Inputs: | 8 |
| Resolution: | 12 bit |
| Country of Origin: | FR |
- Modicon® Quantum™ Automation Platform Applications
- 1-pole low pass 3 dB at 15 Hz +/-20% filter
- Differential input
- 9 input words addressing requirement
- 1 to 5 V, 4 to 20 mA linear measuring range
- 25 mA, 50 VDC absolute maximum input
- >20 mohm voltage, 250 Ohm current +/-0.01% input impedance
- +/-0.05% of full scale, +/-0.1% of full scale maximum absolute accuracy error
- +/-0.04% linearity error
- +/-0.0025% of full scale/deg C, <=0.005% of full scale/deg c accuracy drift according to temperature
- >-72 dB 60 Hz common mode rejection
- 1000 VDC, 3000 VDC for 60 s isolation between channel and bus
- 30 VDC isolation between channel
- 5 ms update time
- Broken wire 4 to 20 mA, under voltage range 1 to 5 V fault type
- 240 mA bus current requirement
- 2 W power dissipation
- Standard module format
- 4 kV contacts conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 resistance to electrostatic discharge
- 10 V/m 80 to 1000 MHz conforming to IEC 801-3 resistance to electromagnetic fields
- -40 to 85 deg c ambient air temperature for storage
- RoHS Compliant|CE Certified|FM Class I Division 2|CSA C22.2 No. 142|cUL Listed|UL 508|IEC 801-2-8/801-2|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
