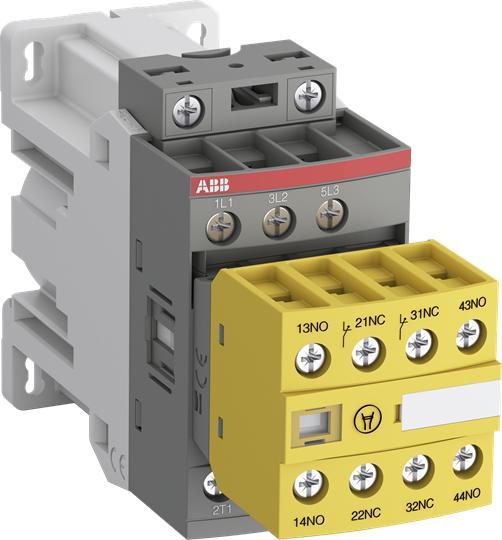

ABB AFS16Z-30-22-30 Contactor, 24 VDC V Coil, 2 A, 3NO Contact, 3 Poles
Sku #47152315839
MFG #AFS16Z-30-22-30
Attributes
| Series: | AFS16 |
| Maximum Load Current: | 2 A |
| Number of Poles: | 3 |
| Coil Voltage: | 24 V DC |
| Coil Power Rating: | 4/7.5/9 kW |
| Frequency Rating: | 50/60 Hz |
- Mechanically linked and mirror contacts make your system safer
- Control circuit with electronic coil interface dedicated 24 VDC for direct control by PLC output >=250 mA, low holding consumption up to 1.7 W
- 24 to 60 VAC, 20 to 60 VDC and 100 to 250 VAC/VDC operated accepting a wide control voltage range
- Reduced panel energy consumption
- Mirror and mechanically linked contacts, with front marked symbol according to IEC60947-5-1, always guaranteeing the right Contactor status
- Front mounted auxiliary contact block permanently fixed
- Protective cover to prevent manual operation
- Yellow housing for easy identification
- Minimum switching capacity 12 V/3 mA, with a failure rate 10-7 according to IEC 60947-5-4
- Built-in surge suppression
- 7.5 kW at 400 V, 9 kW at 415/440/500/690 V, 7.5 kW at 380/400 V, 4 kW at 220/230/240 V
- CB Certified|CCC Certified|CE Certified|CQC Certified|CSA C22.2|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|EN 60947-1/60947-4-1|GL Certified|IEC 60947-1/60947-4-1|RINA Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL 508
