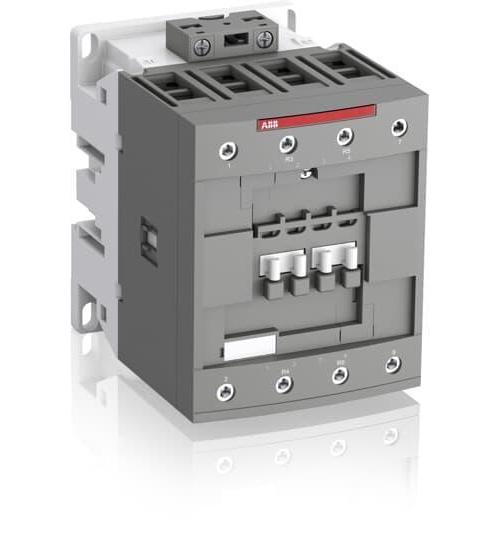

ABB AF80-22-00-13 AC/DC Operated IEC Contactor, 100 to 250 V AC/DC V Coil, 105/125 A, 2NO-2NC Contact, 4 Poles
Sku #47152313393
MFG #AF80-22-00-13
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 105/125 A |
| Number of Poles: | 4 |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 22/37/45 kW |
| Frequency Rating: | 50/60 Hz |
- For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDC
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 22 kW at 220 to 230 to 240 V, 37 kW 380 to 400 V, 45 kW at 415/440/500/690 V
- 105 A at 600 VAC UL/CSA, 125 A at 1-phase 690 V IEC
- IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA C22.2 File No. 60947-4-1
