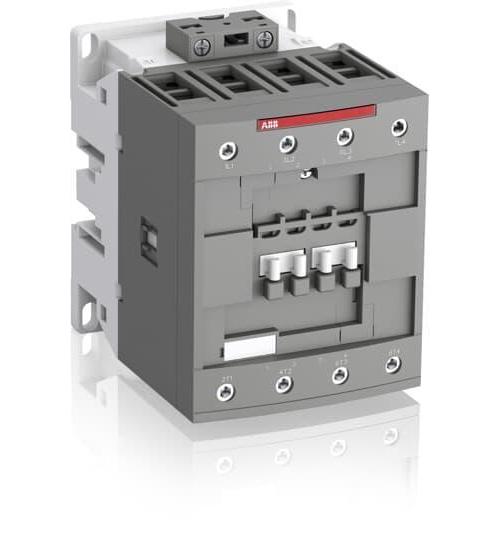

ABB AF80-40-00-11 AC/DC Operated IEC Contactor, 24 to 60 V AC, 20 to 60 V DC V Coil, 80/105/125 A, 4NO Contact, 4 Poles
Sku #47152313371
MFG #AF80-40-00-11
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 80/105/125 A |
| Number of Poles: | 4 |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Coil Power Rating: | 22/37/45 kW |
| Frequency Rating: | 50/60 Hz |
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 22 kW at 220 to 230 to 240 V, 37 kW 380 to 400 V, 45 kW at 415/440/500/690 V
- 105 A at 600 VAC UL/CSA, 125 A at 1-phase 690 V IEC
- For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDC
- RoHs, CSA, cUL, CE, GOST
