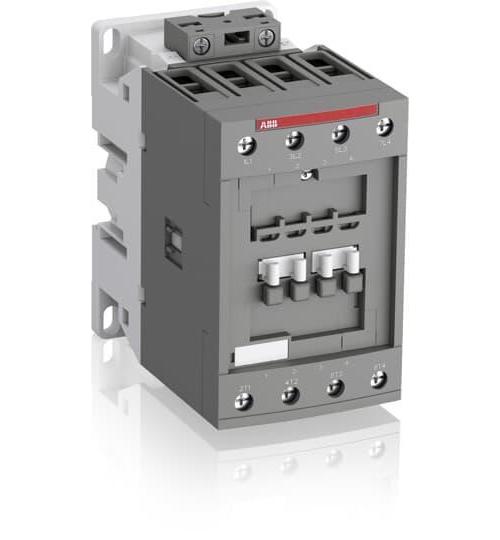

ABB AF40-40-00-13 AF Series AC/DC Operated IEC Contactor, 100 to 250 V AC/DC V Coil, 60/70 A, 4NO Contact, 4 Poles
Sku #47152313353
MFG #AF40-40-00-13
Attributes
| Type: | AC/DC Operated |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 11/18.5/22 kW |
| Series: | AF Series |
| Maximum Load Current: | 60/70 A |
| Number of Poles: | 4 |
- Can withstand short voltage dips and voltage sags
- 60 A at 600 VAC UL/CSA, 70 A at 1-phase 690 V IEC
- No auxiliary contacts
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 70 A at 690 V, 60 A at 690 V, 50 A at 690 V rated operational current AC-1
- 40 A at 220/230/240 V, 40 A at 380/400 V, 40 A at 415 V, 40 A at 440 V, 35 A at 500 V, 25 A at 690 V rated operational current AC-3
- 15 hp at 220 to 240 VAC 3 ph, 30 hp at 440 to 480 VAC 3 ph, 40 hp at 550 to 600 VAC 3 ph, 3 hp at 120 VAC 1 ph, 10 hp at 200 to 208 VAC 3 ph, 7-1/2 hp at 240 VAC 1 ph
- IEC 60947-4-1|EN 60947-1|CSA C22.2 File No. 60947-4-1|CSA Certified|EAC Approved|GOST Certified|UL File No. E312527
- For controlling non-inductive or slightly inductive loads (resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDC
