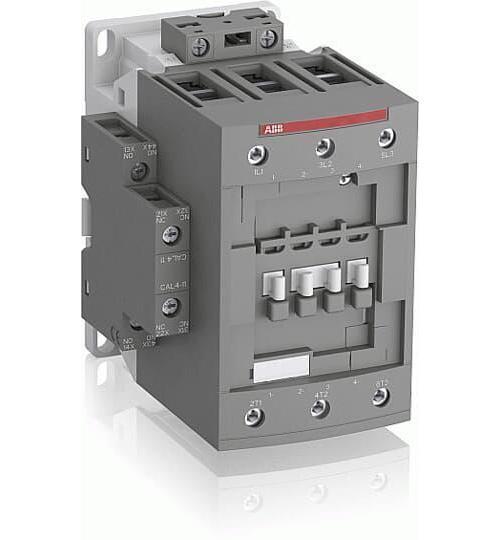

ABB AF80-30-11-12 Non-Reversing Line Contactor, 48 to 130 V AC/DC V Coil, 105 A, 3NO Contact, 3 Poles
Sku #47152313302
MFG #AF80-30-11-12
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 48 to 130 V AC/DC |
| Coil Power Rating: | 30 hp, 60 hp, 75 hp, 7-1/2 hp, 25 hp, 15 hp |
| Series: | AF Series |
| Maximum Load Current: | 105 A |
| Number of Poles: | 3 |
- Compact, space saving design
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 125 A at 690 V, 100 A at 690 V, 85 A at 690 V rated operational current AC-1
- 80 A at 220/230/240 V, 80 A at 380/400 V, 80 A at 415 V, 80 A at 440 V, 65 A at 500 V, 49 A at 690 V, 25 A at 1000 V rated operational current AC-3
- 30 hp at 220 to 240 VAC 3 ph, 60 hp at 440 to 480 VAC 3 ph, 75 hp at 550 to 600 VAC 3 ph, 7-1/2 hp at 120 VAC 1 ph, 25 hp at 200 to 208 VAC 3 ph, 15 hp at 240 VAC 1 ph
- 22 kW at 220/230/240 V, 37 kW at 380/400 V, 45 kW at 415 V, 45 kW at 440 V, 45 kW at 500 V, 45 kW at 690 V, 37 kW at 400 V
- RoHs, CSA, cUL, CE, GOST
- For controlling single and 3 ph motors and switching power circuits
