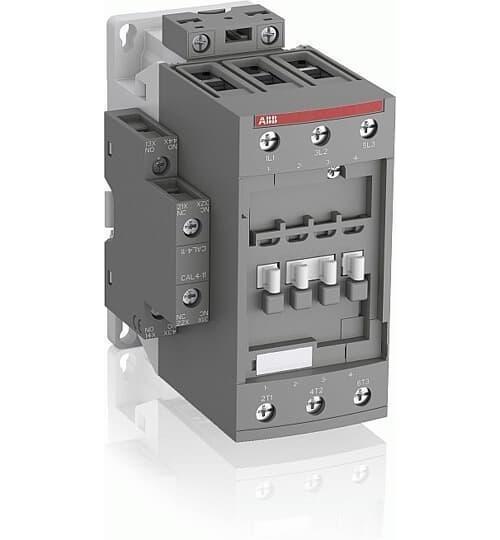

ABB AF52-30-11-14 AC/DC Operated IEC Contactor, 250 to 500 V AC/DC V Coil, 54 A, 3NO Contact, 3 Poles
Sku #47152313244
MFG #AF52-30-11-14
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 54 A |
| Number of Poles: | 3 |
| Coil Voltage: | 250 to 500 V AC/DC |
| Coil Power Rating: | 22 kW, 40 hp, 50 hp |
| Frequency Rating: | 50/60 Hz |
- For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDC, non-inductive or slightly inductive loads
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 22 kW at 3-phase 400 V IEC, 40 hp at 440 to 480 VAC, 50 hp at 550 to 600 VAC
- 54 A at 220 to 240 VAC 3-phase UL/CSA
- RoHs, CSA, cUL, CE, GOST
