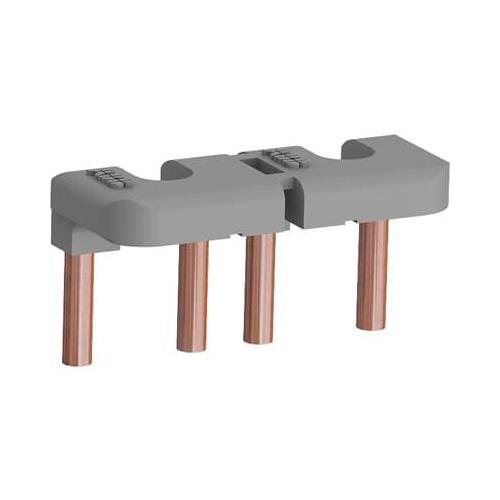

ABB LY16-4 Shorting Bar, 3 Poles, For Use With AF09 to AF16 Contactor
Sku #47152313084
MFG #LY16-4
Attributes
| Number of Poles: | 3 |
| Specifications: | 6 sq-mm Cable Cross-Sectional Area, 33 A |
| Suitable For Use With: | AF09 to AF16 Contactor |
| Dimensions: | 14 mm L x 32.2 mm W x 17.4 mm H |
- GOST Certified|UL Listed
- Parallel and series connection of 3-pole contactors
- To obtain a star point (3 parallel connected poles)
- To connect poles in parallel and thus increase the AC load passing through the flow path made up of the parallel connected poles LP, LY, LH, LF, LG
- The relevant cable cross-sectional area may limit the maximum permissible current
- To connect poles in series and thus increase the DC voltage controlled by the poles LP, LY (only LY16-4 and LY38-4 useable strips)
