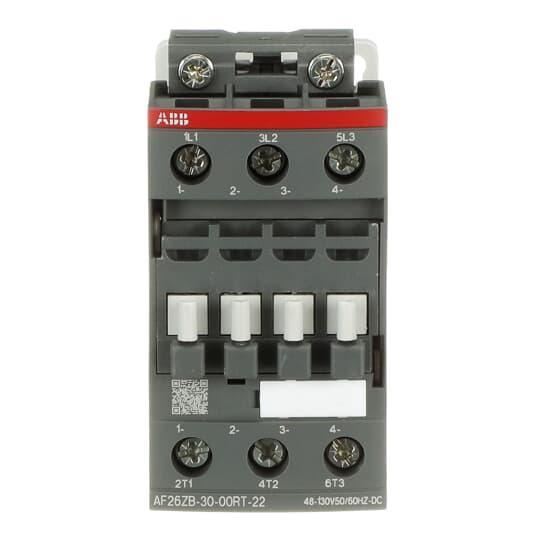

ABB AF26ZB-30-00RT-22 DC Operated Low Coil Consumption IEC Contactor With Ring Tongue Ferrule, 48 to 130 V AC/DC V Coil, 25.3 A, 3NO Contact, 3 Poles
Sku #47152312852
MFG #AF26ZB-30-00RT-22
Attributes
| Type: | DC Operated Low Coil Consumption |
| Maximum Load Current: | 25.3 A |
| Number of Poles: | 3 |
| Coil Voltage: | 48 to 130 V AC/DC |
| Coil Power Rating: | 11 kW, 15 hp, 20 hp |
| Frequency Rating: | 50/60 Hz |
- Designed in accordance to the applicable parts of IEC60077and EN50155standard
- Shocks and vibration withstand conforming to IEC61373(category1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Built-in surge suppression
- Side by side mounting without restriction from -40 to 70 deg C
- 11 kW at 3-phase 400 V IEC, 15 hp at 440 to 480 VAC, 20 hp at 550 to 600 VAC
- 25.3 A at 200 to 208 VAC 3-phase UL/CSA
- For controlling3-phase motors and power circuits up to690VAC and220VDC
- IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545
