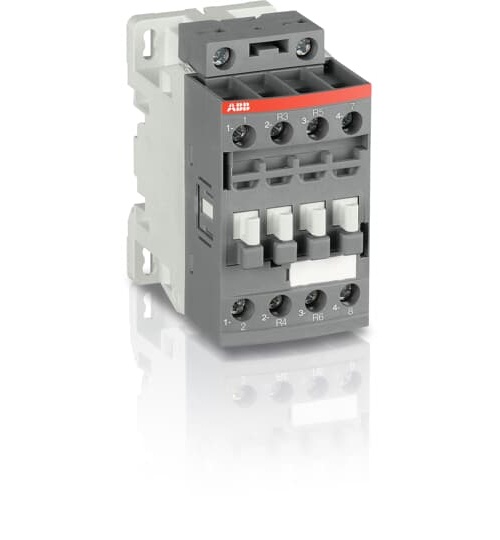

ABB AF09ZB-22-00-22 AC Operated Low Coil Consumption IEC Contactor, 48 to 130 V AC/DC V Coil, 25 A, 2NO-2NC Contact, 4 Poles
Sku #47152312482
MFG #AF09ZB-22-00-22
Attributes
| Type: | AC Operated Low Coil Consumption |
| Maximum Load Current: | 25 A |
| Number of Poles: | 4 |
| Coil Voltage: | 48 to 130 V AC/DC |
| Coil Power Rating: | 2.2/4/5.5 kW |
| Frequency Rating: | 50/60 Hz |
- 2.2 kW at 220 to 230 to 240 V, 4 kW at 380 to 400/415/440 V, 5.5 kW at 500/690 V
- Maximum permitted control voltage must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
- Electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control voltage range Uc minimum to Uc maximum of the contactor
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- 25 A at 600 V UL/CSA, 1-phase 690 V IEC
- Built-in surge suppression and side by side mounting without restriction from -40 to 70 deg C
- Designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- For controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to 690 VAC and 440 VDC
- IEC 60947-4-1|EN 60947-1|UL 508|CSA C22.2 File No. 14|IEC 60077|EN 50155|IEC 61373|EN 45545
