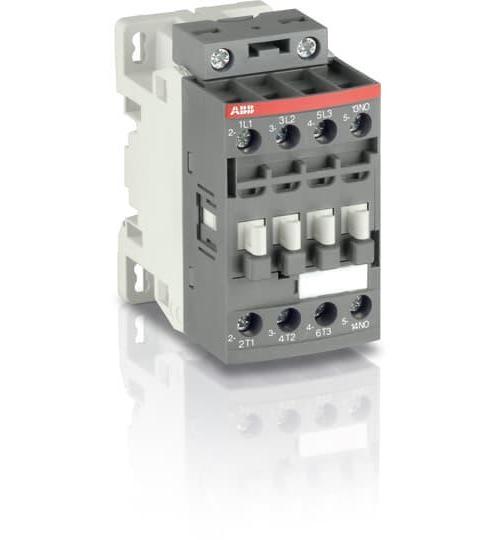

ABB AF09ZB-30-10-21 AC Operated Low Coil Consumption IEC Contactor With Standard Ferrule, 24 to 60 V AC, 20 to 60 V DC V Coil, 9 A, 3NO Contact, 3 Poles
Sku #47152312351
MFG #AF09ZB-30-10-21
Attributes
| Type: | AC Operated Low Coil Consumption |
| Maximum Load Current: | 9 A |
| Number of Poles: | 3 |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Frequency Rating: | 50/60 Hz |
- Designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (H2, HL3 hazard levels)
- Electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control voltage range Uc minimum to Uc maximum of the contactor
- Maximum permitted control voltage must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
- Built-in surge suppression and side by side mounting without restriction from -40 to 70 deg C
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
- For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDC
- IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545
