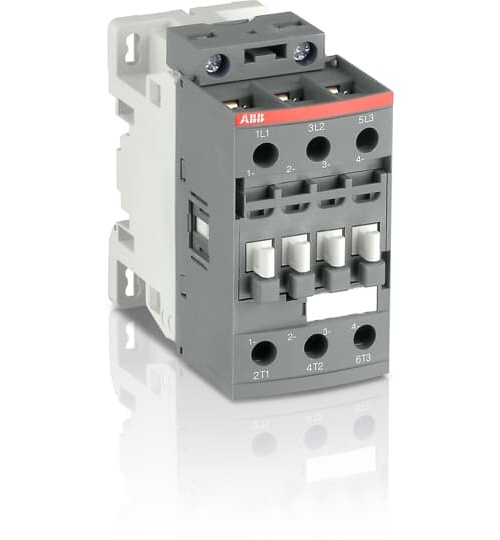

ABB AF30B-30-00-14 AC Operated IEC Contactor With Standard Ferrule, 250 to 500 V AC/DC V Coil, 32.2 A, 3NO Contact, 3 Poles
Sku #47152312254
MFG #AF30B-30-00-14
Attributes
| Type: | AC Operated |
| Maximum Load Current: | 32.2 A |
| Number of Poles: | 3 |
| Coil Voltage: | 250 to 500 V AC/DC |
| Coil Power Rating: | 15 kW, 20 hp, 25 hp |
| Frequency Rating: | 50/60 Hz |
- IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|IEC 60077|EN 50155|IEC 61373|EN 45545
- Designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (H2, HL3 hazard levels)
- Electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide control voltage range Uc minimum to Uc maximum of the contactor
- Maximum permitted control voltage must not be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155
- Built-in surge suppression and side by side mounting without restriction from -40 to 70 deg C
- 15 kW at 3-phase 400 V IEC, 20 hp at 440 to 480 VAC, 25 hp at 550 to 600 VAC
- 32.2 A at 200 to 208 VAC 3-phase UL/CSA
- For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDC
