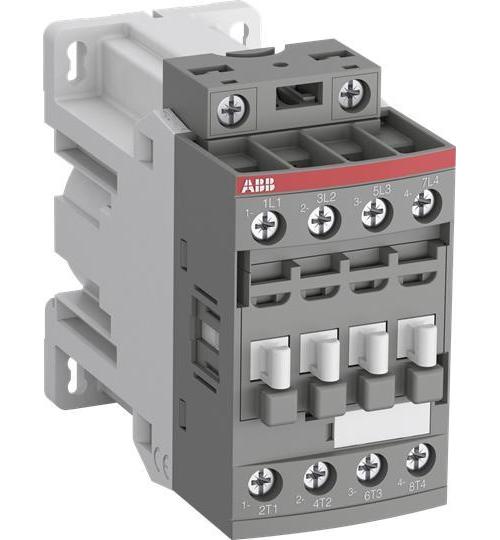

ABB AF16Z-22-00-30 AF Auxiliary Block Contactor, 24 V DC V Coil, 4 Poles
Sku #47152311679
MFG #AF16Z-22-00-30
Attributes
| Type: | Auxiliary Block |
| Coil Voltage: | 24 V DC |
| Frequency Rating: | 50/60 Hz |
| Series: | AF |
| Number of Poles: | 4 |
| Number of Auxiliary Contacts: | 1NO |
- Mainly used for controlling non-inductive or slightly inductive loads
- AF16Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output 250 mA 24 V DC, without need of additional interface relay
- AF... series 4-pole contactors are of the block type design
- used for controlling power circuits up to 690 V AC and 440 V DC
- IEC 60947-5-1|IEC 60947-4-1|PROP65
