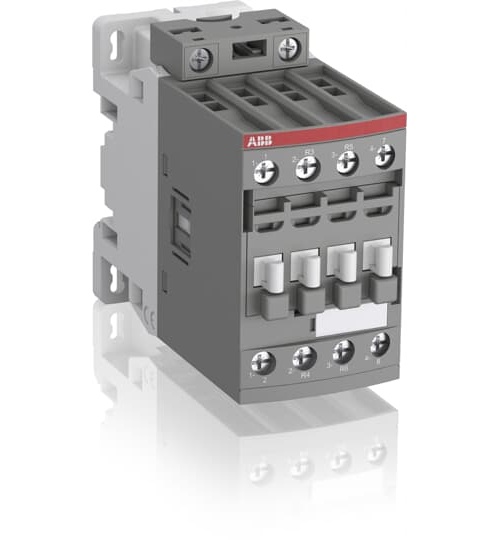

ABB AF26-22-00-13 Non-Reversing Line Contactor, 100 to 250 V AC/DC V Coil, 45 A, 2NO-2NC Contact, 4 Poles
Sku #47152311643
MFG #AF26-22-00-13
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 7-1/2 hp, 15 hp, 20 hp, 2 hp, 3 hp |
| Series: | AF Series |
| Maximum Load Current: | 45 A |
| Number of Poles: | 4 |
- No auxiliary contacts
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 45 A at 690 V, 40 A at 690 V, 32 A at 690 V rated operational current AC-1
- 23.2 A at 220/230/240 V, 22 A at 380/400 V, 21.2 A at 415 V, 20 A at 440 V, 17.6 A at 500 V, 10.5 A at 690 V rated operational current AC-3
- 7-1/2 hp at 220 to 240 VAC 3 ph, 15 hp at 440 to 480 VAC 3 ph, 20 hp at 550 to 600 VAC 3 ph, 2 hp at 120 VAC 1 ph, 7-1/2 hp at 200 to 208 VAC 3 ph, 3 hp at 240 VAC 1 ph
- 5.5 kW at 220/230/240 V, 11 kW at 415 V, 11 kW at 440 V, 11 kW at 500 V, 9 kW at 690 V, 11 kW at 400 V
- For controlling non-inductive or slightly inductive loads (i.e. resistance furnaces)
- BAA Compliant|CB Certified|CCC Certified|cUL Listed|DNV Certified|EAC Certified|GL Certified|LR Certified|RMRS Certified|RoHS Compliant
