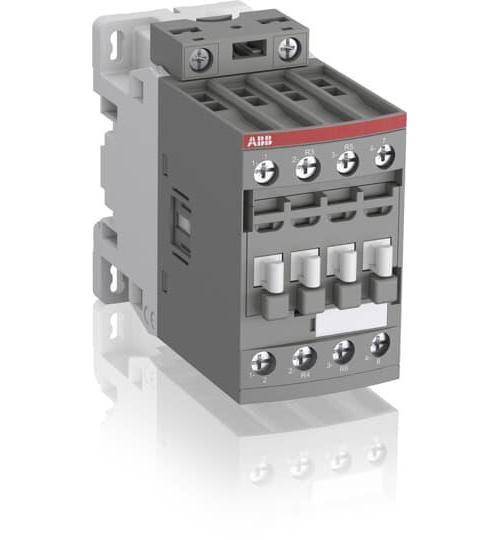

ABB AF26-22-00-11 A-Line Non-Reversing IEC Contactor, 24 to 60 V AC, 20 to 60 V DC V Coil, 45 A, 2NO-2NC Contact, 4 Poles
Sku #47152311641
MFG #AF26-22-00-11
Attributes
| Type: | A-Line Non-Reversing |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Coil Power Rating: | 5.5/9/11 kW |
| Series: | AF Series |
| Maximum Load Current: | 45 A |
| Number of Poles: | 4 |
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 5.5 kW at 220/230/240 VAC, 11 kW at 415 VAC, 11 kW at 440 VAC, 11 kW at 500 VAC, 9 kW at 690 VAC, 11 kW at 400 VAC
- For controlling non-inductive or slightly inductive loads (i.e. resistance furnaces) and generally for controlling power circuits up to 690 VAC and 440 VDC
- ABS Certified|CB Certified|CCC Certified|CE Certified|DNV Certified|DNV GL Certified|EAC Certified|GL Certified|GOST Certified|KC Certified|LR Certified|RINA Certified|RMRS Certified|RoHS 2011/65/EU Compliant|UL Listed|UL File No E319322|IEC 60947-1/60947-4-1|EN 60947-1|60947-4-1|UL 508|CSA C22.2 File No 14
