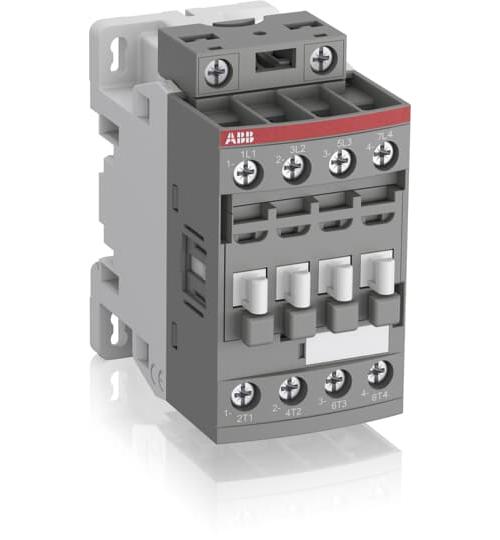

ABB AF09-40-00-13 IEC Contactor, 100 V AC, 250 V DC V Coil, 25 A, 4NO Contact, 4 Poles
Sku #47152311503
MFG #AF09-40-00-13
Attributes
| Series: | AF09 |
| Maximum Load Current: | 25 A |
| Number of Poles: | 4 |
| Coil Voltage: | 100 V AC, 250 V DC |
| Coil Power Rating: | 7-1/2 hp |
| Frequency Rating: | 50/60 Hz |
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1
- 6 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 0.75 hp at 120 VAC, 1.5 hp at 240 VAC 1-phase 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 440/480 VAC, 7.5 hp at 550/600 VAC 3-phase power rating
- Surge Supression
- RoHS Compliant|UL 508|CSA C22.2 No. 14|IEC/EN 60947-4-1|IEC/EN 60947-4-1A|IEC/EN 60947-4-1-07|CE Certified|CB Certified|CCC Certified|cUL Listed|DNV Certified|EAC Approved|RINA Certified
- For controlling non-inductive or slightly inductive loads
