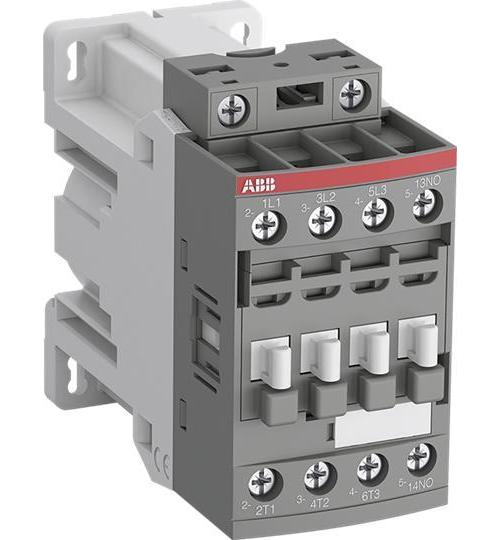

ABB AF09Z-30-10-30 Contactor, 24 VDC V Coil, 2 A, 3NO Contact, 3 Poles
Sku #47152311329
MFG #AF09Z-30-10-30
Attributes
| Series: | AF09Z |
| Maximum Load Current: | 2 A |
| Number of Poles: | 3 |
| Coil Voltage: | 24 V DC |
| Coil Power Rating: | 2.2/4/5.5 kW |
| Frequency Rating: | 50/60 Hz |
- Control circuit 24 VDC operated with electronic coil interface allowing low holding consumption up to 1.7 W and reduced panel energy consumption
- Allow direct control by PLC output >=250 mA, 24 VDC
- Very distinct closing and opening
- Built-in surge suppression
- Add on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 2.2 kW at 220/230/240 V, 4 kW at 380/400/415/400 V, 5.5 kW at 500/690 kW
- CB Certified|CCC Certified|CE Certified|CQC Certified|CSA Certified|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|GL Certified|RINA Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL Listed
