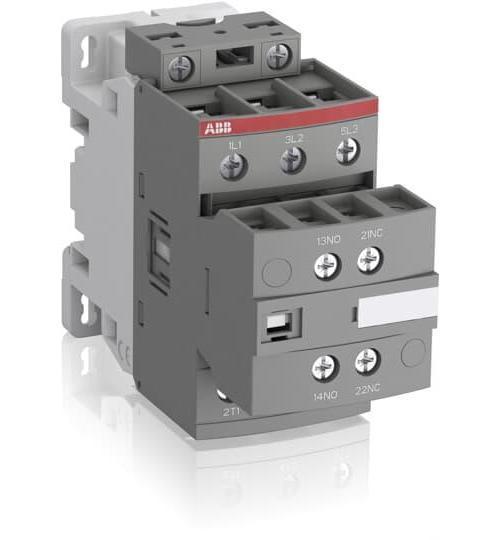

ABB AF30-30-11-13 Non-Reversing Line Contactor, 100 to 250 V AC/DC V Coil, 50 A, 3NO Contact, 3 Poles
Sku #47152311133
MFG #AF30-30-11-13
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 10 hp, 20 hp, 25 hp, 2 hp, 5 hp |
| Series: | AF Series |
| Maximum Load Current: | 50 A |
| Number of Poles: | 3 |
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 50 A at 690 V, 42 A at 690 V, 37 A at 690 V rated operational current AC-1
- 33 A at 220/230/240 V, 32 A at 380/400 V, 32 A at 415 V, 32 A at 440 V, 28 A at 500 V, 21 A at 690 V rated operational current AC-3
- 10 hp at 220 to 240 VAC 3 ph, 20 hp at 440 to 480 VAC 3 ph, 25 hp at 550 to 600 VAC 3 ph, 2 hp at 120 VAC 1 ph, 10 hp at 200 to 208 VAC 3 ph, 5 hp at 240 VAC 1 ph
- 9 kW at 220/230/240 V, 15 kW at 380/400 V, 15 kW at 415 V, 18.5 kW at 440 V, 18.5 kW at 500 V, 18.5 kW at 690 V, 15 kW at 400 V
- For controlling 3 ph motors, non-inductive or slightly inductive loads
- BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS Certified
