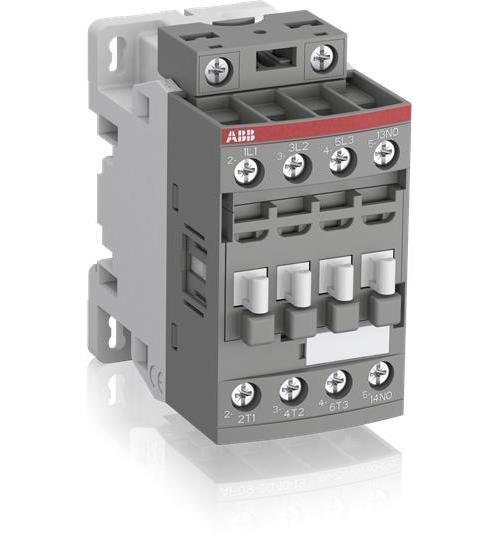

ABB AF16-30-01-13 Contactor, 100 V AC, 250 V DC V Coil, 30 A, 3NO Contact, 3 Poles
Sku #47152311073
MFG #AF16-30-01-13
Attributes
| Series: | AF16 |
| Maximum Load Current: | 30 A |
| Frequency Rating: | 50/60 Hz |
| Coil Voltage: | 100 V AC, 250 V DC |
| Number of Poles: | 3 |
| Wattage: | 9 kW |
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
- For controlling 3-phase motors, non-inductive or slightly inductive loads
- RoHS Compliant|cUL Listed|UL 508|UL File No. E312527|IEC/EN 60947-1/60947-4-1|CSA C22.2 No. 14|CB Certified|CCC Certified|CE Certified|DNV Certified|EAC Approved|RINA Certified
