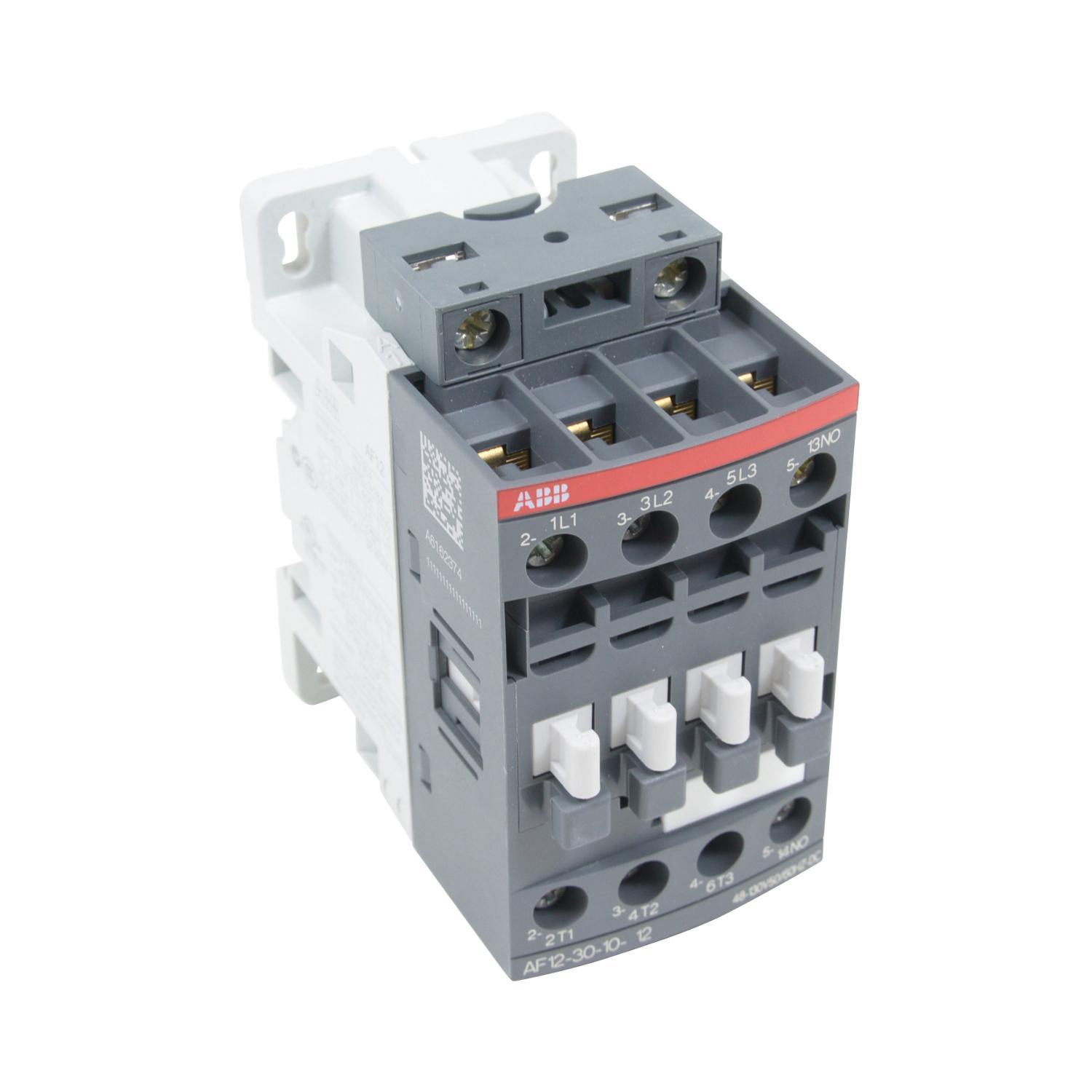

ABB AF12-30-10-12 Non-Reversing Line Contactor, 48 to 130 V AC/DC V Coil, 28 A, 3NO Contact, 3 Poles
Sku #47152311032
MFG #AF12-30-10-12
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 48 to 130 V AC/DC |
| Coil Power Rating: | 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp |
| Series: | AF Series |
| Maximum Load Current: | 28 A |
| Number of Poles: | 3 |
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 28 A at 690 V, 24 A at 690 V rated operational current AC-1
- 12 A at 220/230/240 V, 12 A at 380/400 V, 12 A at 415 V, 12 A at 440 V, 12.5 A at 500 V, 9 A at 690 V rated operational current AC-3
- 3 hp at 220 to 240 VAC 3 ph, 7-1/2 hp at 440 to 480 VAC 3 ph, 10 hp at 550 to 600 VAC 3 ph, 1 hp at 120 VAC 1 ph, 3 hp at 200 to 208 VAC 3 ph, 2 hp at 240 VAC 1 ph
- 3 kW at 220/230/240 V, 5.5 kW at 380/400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V, 5.5 kW at 400 V
- For controlling 3 ph motors, non-inductive or slightly inductive loads
- BAA Compliant|BV Certified|CB Certified|CCC Certified|CSA C22.2 No.14|DNV GL Certified|IEC 60947-1/60947-4-1|LR Certified|RMRS Certified|UL 508
