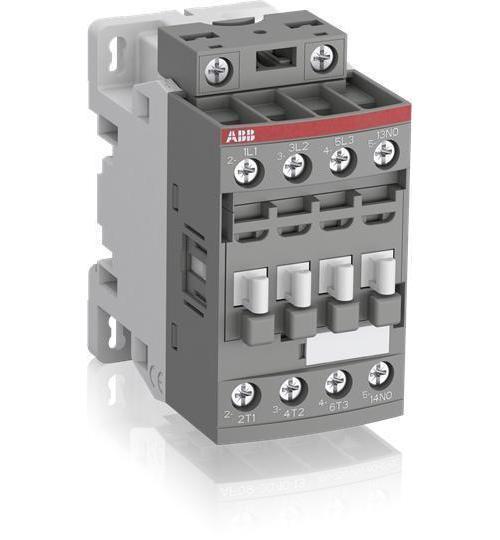

ABB AF09-30-01-14 AC/DC Operated IEC Contactor, 250 to 500 V AC/DC V Coil, 9 A, 3NO Contact, 3 Poles
Sku #47152311014
MFG #AF09-30-01-14
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 9 A |
| Number of Poles: | 3 |
| Coil Voltage: | 250 to 500 V AC/DC |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Frequency Rating: | 50/60 Hz |
- For controlling 3-phase motors, power circuits up to 690VAC and 220VDC, non-inductive or slightly inductive loads
- RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA C22.2 File No. 14|CB Certified|CCC Compliant|cUL Listed|CE Certified|DNV Approved|EAC Approved|RINA Approved
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
