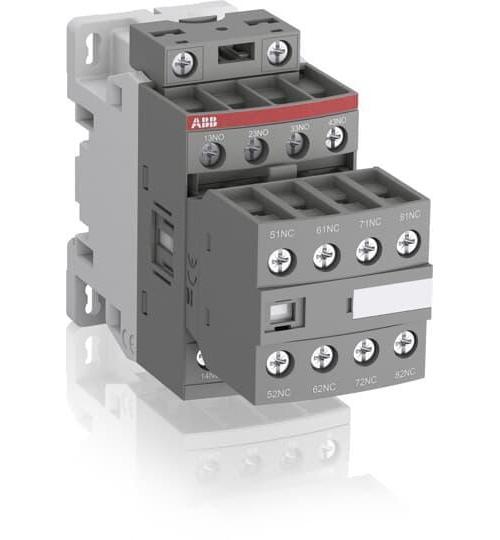

ABB NF44E-13 Contactor Relay, 4NO-4NC 4 Form C Contact, 100 to 250 VAC/VDC V Coil
Sku #47152310073
MFG #NF44E-13
Attributes
| Series: | NF Series |
| Coil Voltage: | 100 to 250 V AC/DC |
| Contact Rating: | 6 A at 127 V AC |
| Frequency Rating: | 50/60 Hz |
| Contact Form: | 4NO-4NC 4 Form C |
| Number of Poles: | 8 |
- 8 poles with a permanently fixed 4-pole auxiliary contact block
- Contactor relays have mechanically linked auxiliary contact elements
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range
- Can manage large control voltage variations
- Only 4 coils to cover control voltages between 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 6 A at 24 VDC, 2.8 A at 48 VDC, 1 A at 72 VDC, 0.55 A at 110 VDC, 0.55 A at 125 VDC, 0.27 A at 220 VDC, 0.27 A at 250 VDC, 0.15 A at 400 VDC, 0.13 A at 500 VDC, 0.1 A at 600 VDC rated operational current DC-13
- 6 A at 24 to 127 VAC, 4 A at 220 to 240 VAC, 3 A at 400 to 440 VAC, 2 A at 500 VAC, 2 A at 690 VAC rated operational current AC-15
- For applications that require small control relays with 4 NO and 4 NC contacts
- RoHs, CSA, cUL, CE, GOST
