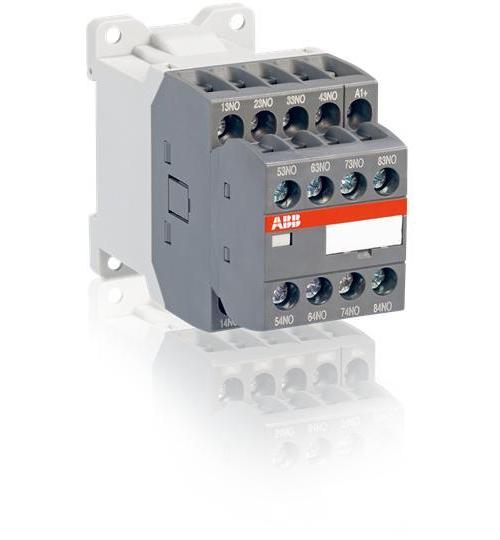

ABB NSL62E-81 Contactor Relay, 2 A, 6NO-2NC 6 Form A/2 Form B Contact
Sku #47152305651
MFG #NSL62E-81
Attributes
| Amperage Rating: | 2 A |
| Contact Form: | 6NO-2NC 6 Form A/2 Form B |
| Terminal Type: | Screw |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 8 |
| Enclosure Type: | IP20 |
- For switching auxiliary and control circuits
- IEC 60947-5-1|EN 60947-5-1|UL 508|CSA C22.2 N 14|RoHS Compliant
- NSL contactor relays are used for switching auxiliary circuits and control circuits
- 8-pole contactor relays (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor relay side)
- DC operated with solid core magnet control circuit
- Rated operational current AC-15 (Ie) of (220/240 VAC) 4 A, (24/127 V) 6 A, (400/440 V) 3 A, (500 V) 2 A, (690 V) 2 A
- Rated short-time withstand current is for 0.1 sec 140 A for 1 sec 100 A
- 1200 cycles per hour AC-15, 900 cycles per hour DC-13 maximum electrical switching frequency
- Rated operational current DC-13 (110 V) 0.55 A/60 W, (125 V) 0.55 A/69 W, (220 V) 0.27 A/60 W, (24 V) 6 A/144 W, (250 V) 0.27 A/68 W, (48 V) 2.8 A/134 W, (72 V) 1 A/72 W
- Rated insulation voltage 600 VAC to UL/CSA, 690 VAC to IEC 60947-5-1 and VDE 0110 (Gr. C)
- 6 kV rated impulse withstand voltage
- 15 to 20 ms between coil de-energization and NC contact closing, 13 to 17 ms between coil de-energization and no contact opening, 31 to 53 ms between coil energization and NC contact opening, 36 to 59 ms between coil energization and no contact closing operate time
- Flexible with ferrule 1/2 x 0.75 to 2.5 sq-mm, flexible with insulated ferrule 1 x 0.75 to 2.5 sq-mm, flexible with insulated ferrule 2 x 0.75 to 1.5 sq-mm, rigid 1/2 x 0.75 to 2.5 sq-mm connecting capacity of auxiliary circuit
- Flexible with ferrule 1/2 x 0.75 to 2.5 sq-mm, flexible with insulated ferrule 1 x 0.75 to 2.5 sq-mm, flexible with insulated ferrule 2 x 0.75 to 1.5 sq-mm, rigid 1/2 x 0.75 to 2.5 sq-mm connecting capacity of control circuit
- 9 mm auxiliary circuit, control circuit wire stripping length of 9 mm
- 3000 m maximum operating altitude permissible
