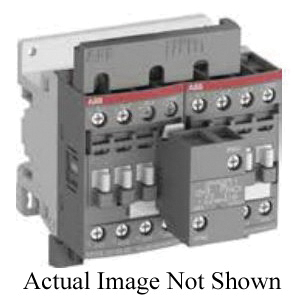

ABB AF26N1R-30-22-11 AC/DC Operated Reversing NEMA Contactor, 24 to 60 V AC, 20 to 60 V DC V Coil, 27 A, 3NO Contact, 3 Poles
Sku #47152302035
MFG #AF26N1R-30-22-11
Attributes
| Type: | AC/DC Operated Reversing |
| Maximum Load Current: | 27 A |
| Number of Poles: | 3 |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Coil Power Rating: | 7-1/2 hp, 10 hp |
| Frequency Rating: | 50/60 Hz |
- For directionally controlling 3-phase motor circuits up to 575 VAC
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC
- UL 508|CSA 22.2 60947-4-1
