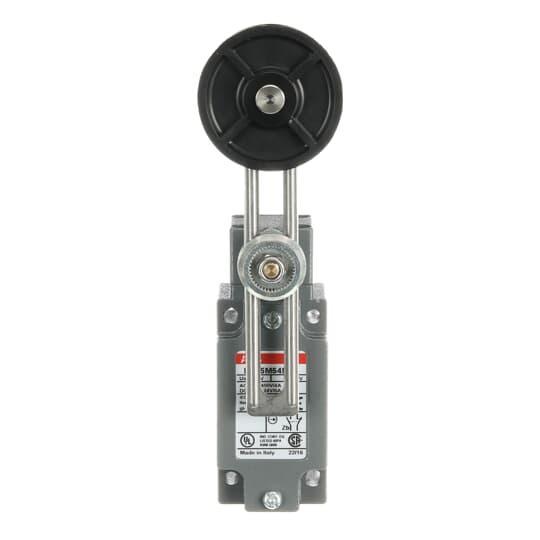

ABB LS45M54B11 LS Series Limit Switch, 24/130/230/240/400 VAC, 24/110/250 VDC, 0.27/0.6/1.8/2.8/3/3.1/5.5/10 A, Adjustable Roller Lever Actuator, 1NO-1NC Contact
Sku #47152261409
MFG #LS45M54B11
Attributes
| Series: | LS Series |
| Amperage Rating: | 0.27/0.6/1.8/2.8/3/3.1/5.5/10 A |
| Contact Configuration: | 1NO-1NC |
| Voltage Rating: | 24/130/230/240/400 V AC/24/110/250 V DC |
| Frequency Rating: | 50/60 Hz |
| Closed Contact Resistance: | 25 MOhm |
- RoHs, CSA, cUL, CE, GOST
- For presence/absence, positioning and travel limit, objects passing/counting mechanical applications
- Visible operation
- Able to switch strong currents (10 A conventional thermal current)
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
- 10 A at 24 VAC, 5.5 A at 130 VAC, 3.1 A at 230 VAC, 3 A at 240 VAC, 1.8 A at 400 VAC at AC-15, 2.8 A at 24 VDC, 0.6 A at 110 VDC, 0.27 A at 250 VDC at DC-13
