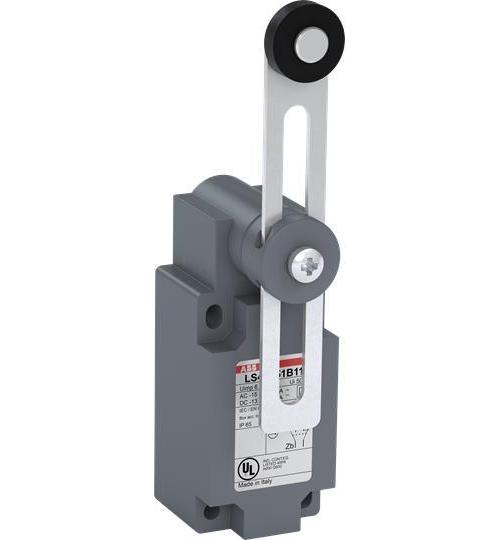

ABB LS45P51B11 Limit Switch, Roller Lever Actuator, 1NO-1NC Contact
Sku #47152261193
MFG #LS45P51B11
Attributes
| Frequency Rating: | 50/60 Hz |
| Contact Rating: | 10 A at 24 V |
| Actuator: | Roller Lever |
| Contact Configuration: | 1NO-1NC |
| Action: | Snap |
| Enclosure Type: | IP65 |
- CSA C22-2 N14|CE Certified|IEC 60947-1|IEC 60947-5-1|EN 60947-1|EN 60947-5-1|EU Directive 2011/65/EU|UL 508|UL Type 4
- LS45P51B11 is a 40 mm W, standard reinforced limit switch made of fiber-glass reinforced UL-V0 material, with 4 mounting holes at the top and bottom, 1-1/2 in NPT cable entry on the bottom, adjustable plastic roller lever (dia22 mm) actuator and 1NO + 1NC snap action (Zb type) contacts
- 3.1 A at 230 V, 3 A at 240 V, 4 A at 400 V, 5.5 A at 130 V, 10 A at 24 V rated operational current AC-15 and 0.55 A at 125 V, 6 A at 24 V, 0.4 A at 250 V, 0.6 A at 110 V rated operational current DC-13
