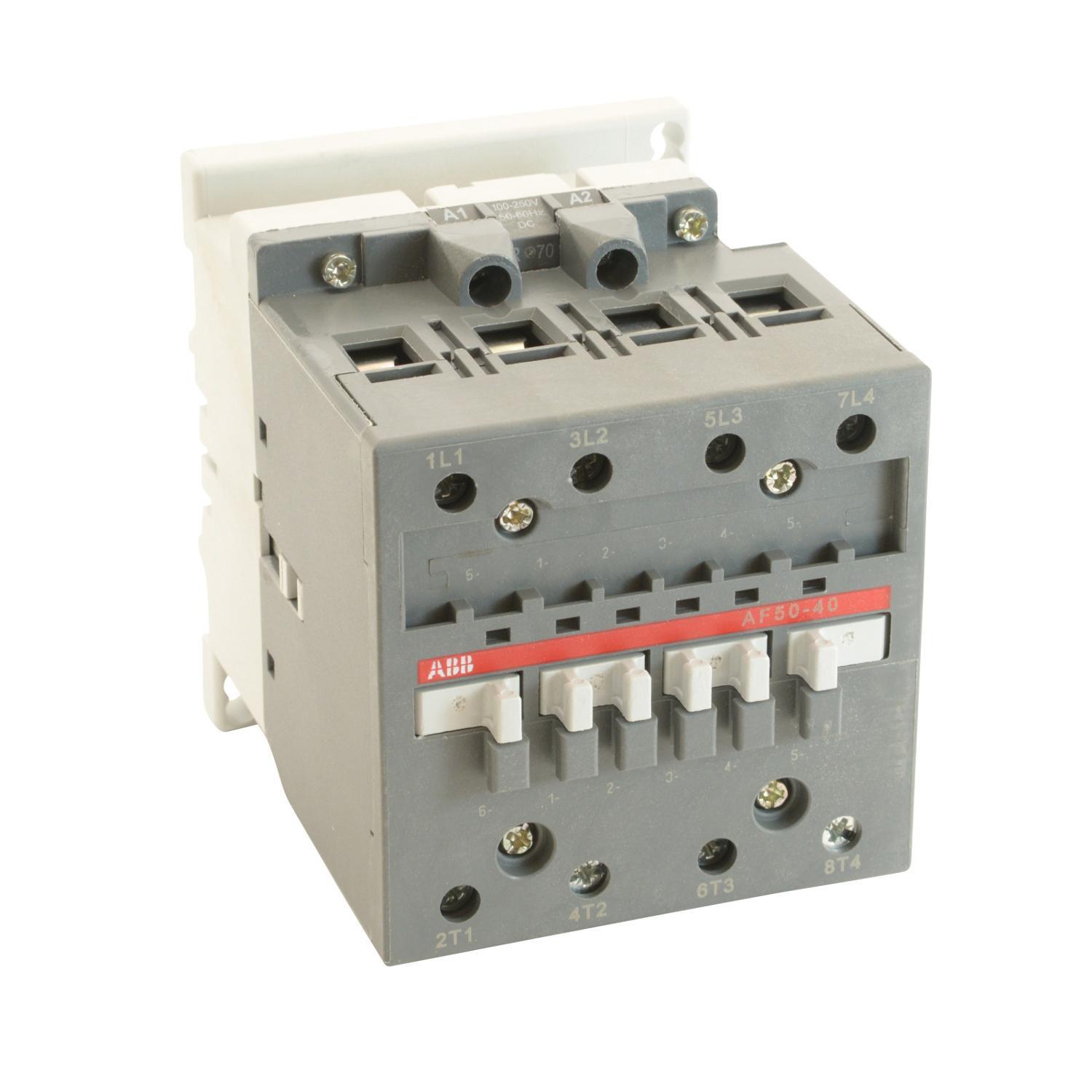

ABB AF50-40-00-70 AC/DC Operated IEC Contactor With Standard Ferrule, 100 to 250 V AC/DC V Coil, 80 A, 4NO Contact, 4 Poles
Sku #47152211480
MFG #AF50-40-00-70
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 80 A |
| Frequency Rating: | 50/60 Hz |
| Coil Voltage: | 100 to 250 V AC/DC |
| Number of Poles: | 4 |
| Contact Configuration: | 4NO |
- Designed in accordance to the applicable parts of IEC60077and EN50155standard
- Shocks and vibration withstand conforming to IEC61373(category1, class B)
- Fire and smoke safety compliance to European standard EN 45545 (HL2, HL3 hazard levels)
- Electronic coil interface accepting a wide DC control voltage range (0.85 Ucminimum to 1.1Ucmaximum according to IEC60947-4-1) including several Uc control voltages (0.7 to 1.25Uc according to IEC60077) used for battery supply
- Built-in surge suppression
- Side by side mounting without restriction from -40to 70 deg C
- For controlling non-inductive or slightly inductive loads and generally for controlling power circuits up to 690 VAC and up to 220 VDC, controlling single and three phase motors and switching power circuits
- RoHs, CSA, cUL, CE, GOST
