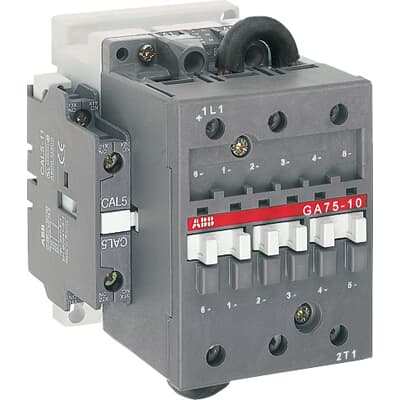

ABB GA75-10-11-80 AC Operated IEC Contactor, 230 to 240 V AC V Coil, 75 A, 1NO Contact
Sku #47152210080
MFG #GA75-10-11-80
Attributes
| Type: | AC Operated |
| Maximum Load Current: | 75 A |
| Contact Configuration: | 1NO |
| Coil Voltage: | 230 to 240 V AC |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
- Main poles the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking
- Arc suppression is more difficult in DC than in AC to choose a contactor, it is necessary to know the current and voltage to be broken as well as the l/r time constant of the power circuit to be controlled
- GA75 contactors are of the block type design
- The three contactor paths are arranged in series via two supplied and fitted insulated connections (25 mm squared)
- The GA75 are 1-pole devices for which the connection polarities indicated next to the connection terminals must be respected
- Furthermore, they are marked 1l1 for the positive terminal and 2t1 for the negative terminal
- 75 A at 600 VDC/35 A at 1000 VDC UL/CSA
- RoHs, CSA, cUL, CE, GOST
- For controlling shunt or series motors and resistive or slightly inductive loads up to 1000 VDC
