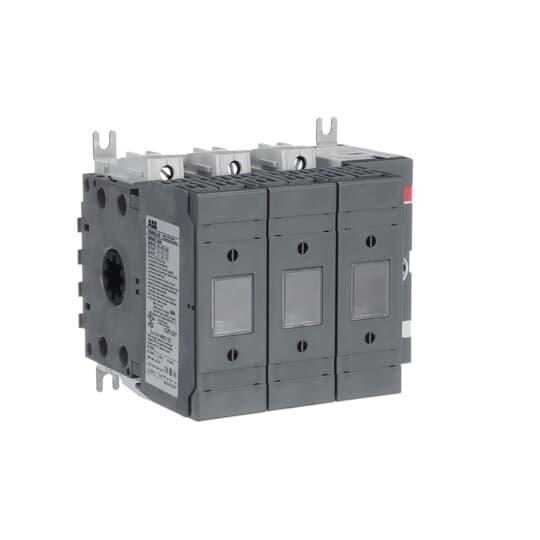

ABB OS60GJ30 Class J Front Operated Disconnect Switch, 600/690 VAC, 60 A, 15 hp at 240 VAC, 30 hp at 480 VAC, 50 hp at 600 VAC, 3 Poles
Sku #41701948239
MFG #OS60GJ30
Attributes
| Type: | Class J Front Operated Fusible |
| Voltage Rating: | 600/690 V AC |
| Horsepower: | 15 hp at 240 VAC, 30 hp at 480 VAC, 50 hp at 600 VAC |
| Series: | OS Series |
| Amperage Rating: | 60 A |
| Number of Poles: | 3 |
- OS switch fuses are the optimal solution for motor protection, they can be installed next to transformers in heavy industry
- The contact design combined with the fuse link enables rapid fault clearance and maintains protection level even after a fault occurs
- Our motorized switch fuses protect motors from overcurrent and can be operated both remotely and manually
- Low Voltage Applications
- Protected Tunnel Terminal
- EAC Approved|CCC Certified|CE Certified|CSA Certified|UL 98
