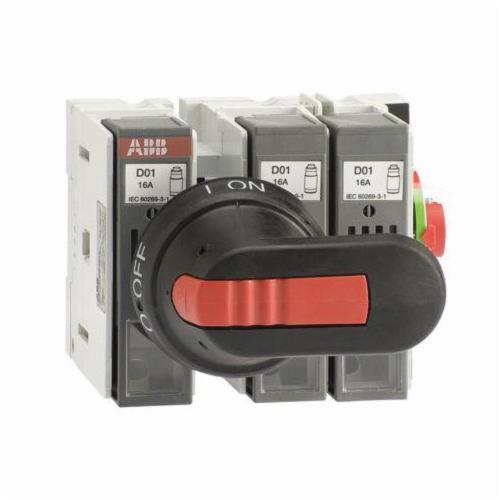

ABB OS30FAJ12P Fusible Open Disconnect Switch, 600 VAC, 30 A, 20 hp, 12 Poles
Sku #41701942099
MFG #OS30FAJ12P
Attributes
| Type: | Fusible Open |
| Voltage Rating: | 600 V AC |
| Horsepower: | 20 hp |
| Series: | OS Series |
| Amperage Rating: | 30 A |
| Number of Poles: | 12 |
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 1-pole to the left of mechanism, 2-poles to the right of mechanism
- Shaft mounting depths measured from the left side of the switch
- Black ON-OFF Plastic Handle and Shaft
- UL 98|UL 248|CSA C22.2 No. 4|IEC 60947-1|IEC 60947-3
- For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers and low voltage applications
