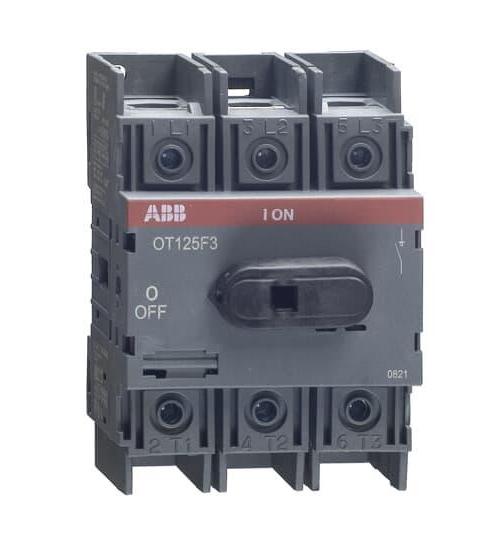

ABB OT125F3 Front Operated Non-Fusible Open Disconnect Switch, 600 VAC, 125 A, 50 hp, 3 Poles
Sku #41701939163
MFG #OT125F3
Attributes
| Type: | Front Operated Non-Fusible Open |
| Voltage Rating: | 600 V AC |
| Horsepower: | 50 hp |
| Series: | OT Series |
| Amperage Rating: | 125 A |
| Frequency Rating: | 50/60 Hz |
- For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers
- Fully enclosed 125 A conventional thermal current
- Top in bottom out bottom in top out position of line terminals
- 8 kV rated impulse withstand voltage
- 750 VAC rated insulation voltage
- 3.6 kA rated short circuit making capacity at 690 VAC
- At rated operating conditions per pole 6.3 W power loss
- Mechanism on top of the switch switches operating mechanism
- Quick make, quick brake mechanism
- Protected Terminal Clamp
- CE Certified|UL Listed|CSA Certified
