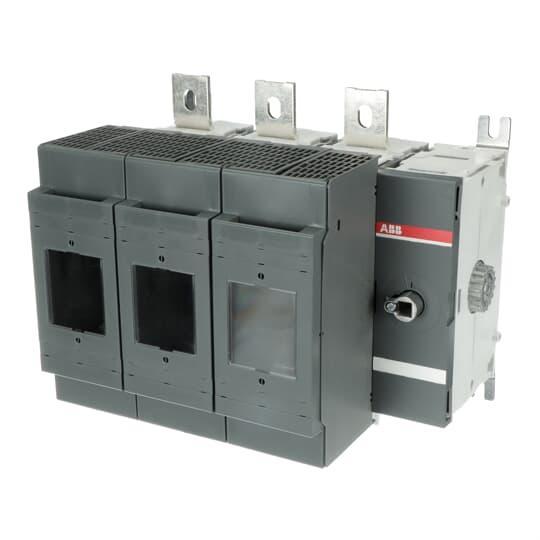

ABB OS600J30 Class J Front Operated Disconnect Switch, 600/690 VAC, 600 A, 200 hp at 240 VAC, 400 hp at 480 VAC, 500 hp at 600 VAC, 3 Poles
Sku #41701929287
MFG #OS600J30
Attributes
| Type: | Class J Front Operated Fusible |
| Voltage Rating: | 600/690 V AC |
| Horsepower: | 200 hp at 240 VAC, 400 hp at 480 VAC, 500 hp at 600 VAC |
| Series: | OS Series |
| Amperage Rating: | 600 A |
| Number of Poles: | 3 |
- OS switch fuses are the optimal solution for motor protection, they can be installed next to transformers in heavy industry
- The contact design combined with the fuse link enables rapid fault clearance and maintains protection level even after a fault occurs
- Our motorized switch fuses protect motors from overcurrent and can be operated both remotely and manually
- OS switch fuses are designed for personal safety as well as for reliable process protection, when in the ON position, the interlocked fuse protection covers cannot be removed
- When in the OFF position, the fuse link is fully isolated from both ends, also the handle is padlockable with three separate padlocks for ensured safety
- Test proven type 2 coordination tables for the OS switch fuses are available online 24/7
- These motor starting solutions also help minimize the time needed for sizing all the starter components and ensure reliable operation after a fault occurs
- Designed for extreme conditions
- Modular design, all our switches have been designed for easy and cost efficient installation, maintenance and use
- Time saving accessories
- The interlocking fuse covers prevent opening while the switch is in ON position, the switch fuses have contacts on both sides of the fuse
- The fuses are totally isolated in the OFF position, reducing the risk of electric shock to authorized personne
- Low Voltage Applications
- Terminal Bolt Kit
- EAC, CCC, CE|CSA Certified|UL 98
