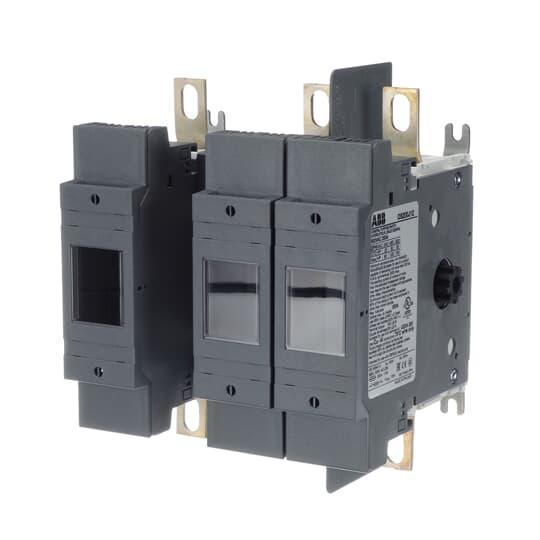

ABB OS200J12 OS Series Front Operated Fusible Open Disconnect Switch, 1000 VAC, 200 A, 150 hp, 1NO-1NC 1 Form A/1 Form B Contact, 3 Poles
Sku #41701924716
MFG #OS200J12
Attributes
| Type: | Front Operated Fusible Open |
| Voltage Rating: | 1 kV AC |
| Horsepower: | 150 hp |
| Series: | OS Series |
| Amperage Rating: | 200 A |
| Number of Poles: | 3 |
- For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 1-pole to left of mechanism, 2-poles to right
- Terminal Bolt Kit
- RoHs, CSA, cUL, CE, GOST
