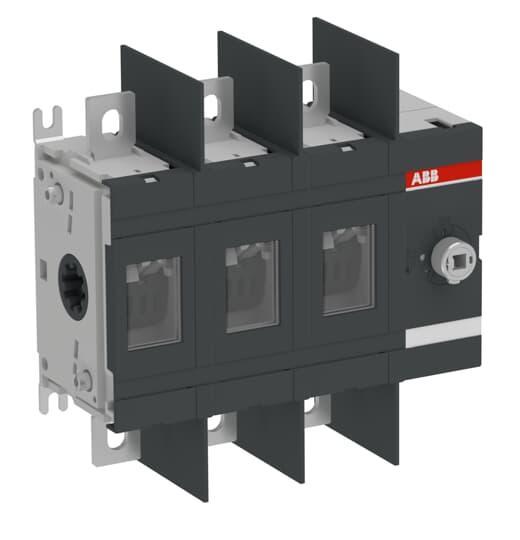

ABB OT200U30 Front Operated Non-Fusible Open Disconnect Switch, 600 VAC, 200 A, 200 hp, 3 Poles
Sku #41701923267
MFG #OT200U30
Attributes
| Type: | Front Operated Non-Fusible Open |
| Voltage Rating: | 600 V AC |
| Horsepower: | 200 hp |
| Series: | OT Series |
| Amperage Rating: | 200 A |
| Number of Poles: | 3 |
- Fingerproof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "off" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track-resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick-make, quick-break operating mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers
- UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3|CE Marked
