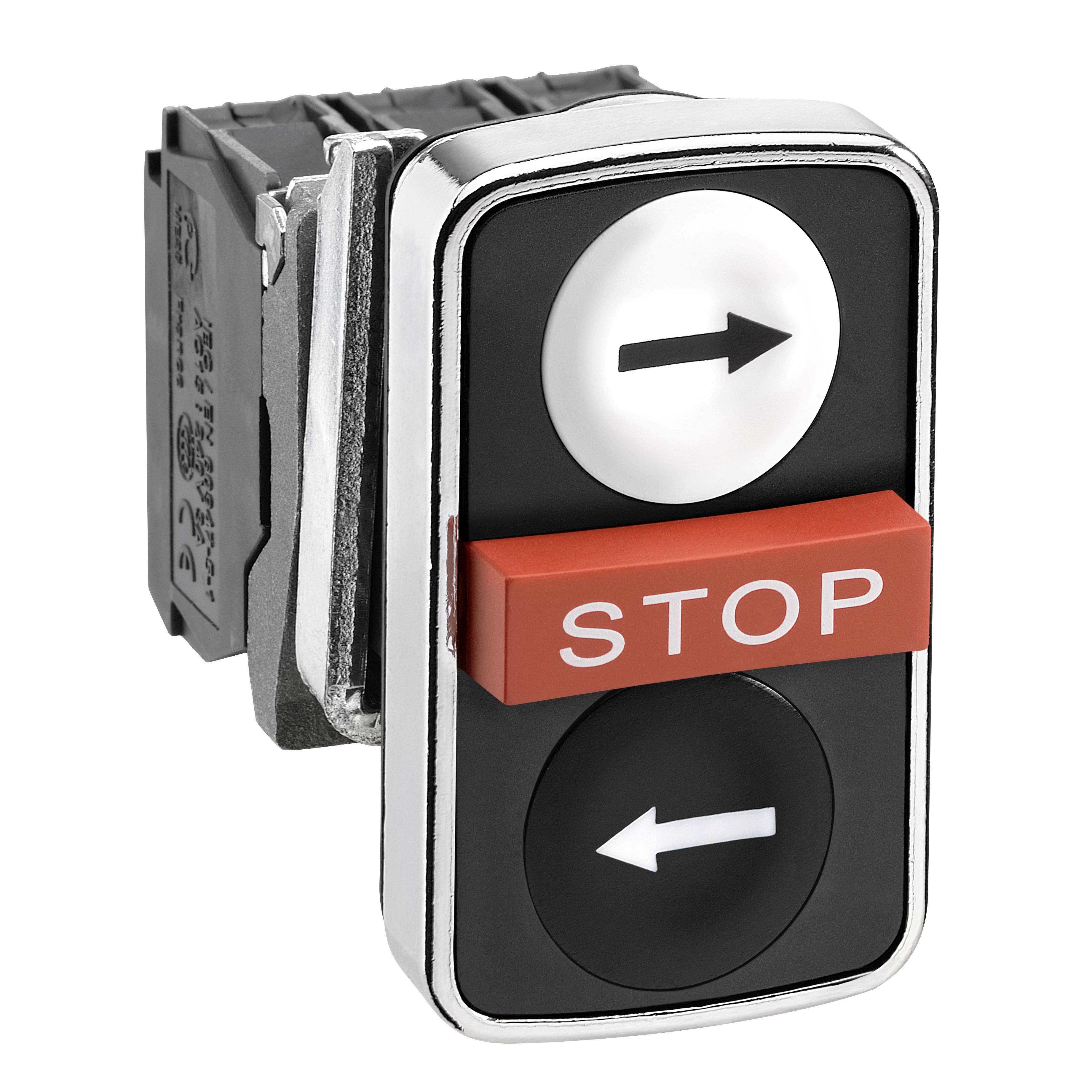

Schneider Electric XB4BA711237 XB4 Series Double Button, 0.87 in Dia, 1 NO + 1 NC contact operator
Sku #38911960351
MFG #XB4BA711237
Attributes
| Type: | Double Button |
| Size: | 0.87 in Dia |
| Contact Mode: | Momentary |
| Series: | XB4 Series |
| Contact Configuration: | 1NO-1NC (Time Delayed) |
| Contact Rating: | 10 A |
- Zamak fixing collar material
- White ''right arrow'' - black ''left arrow'' - red ''STOP'' operators description
- 1015.26 psi (7000000 Pa) 131 deg F (55 deg C) 0.1 m resistance to high pressure washer
- White marking when green, red or black capsBlack marking when white caps colour of marking
- Standard contacts contacts usage
- With EN/IEC 60947-5-1 appendix K positive opening
- 06 in (1.5 mm) NC changing electrical state)0.10 in (2.6 mm) NO changing electrical state)0.17 in (4.3 mm) total travel) operating travel
- 3.5 N NC changing electrical state3.8 N NO changing electrical state operating force
- 1000000 cycles mechanical durability
- Silver alloy (Ag/Ni) contacts material
- 10 A cartridge fuse gG EN/IEC 60947-5-1 short-circuit protection
- 600 V 3)EN 60947-1 ui rated insulation voltage
- 6 kV EN 60947-1 uimp rated impulse withstand voltage
- Complete product device presentation
- TH protective treatment
- Class I IEC 61140 electrical shock protection class
- For operation in harsh environments
- EN/IEC 60947-1EN/IEC 60947-5-5EN/IEC 60947-5-4EN/IEC 60947-5-1UL|Certified|508CSA|C22.2 No 14JIS C8201-5-1JIS C8201-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|UL Listed|Certified|ListedCSA|RINA|BV|DNV|LROS (Lloyds register of shipping)GL
