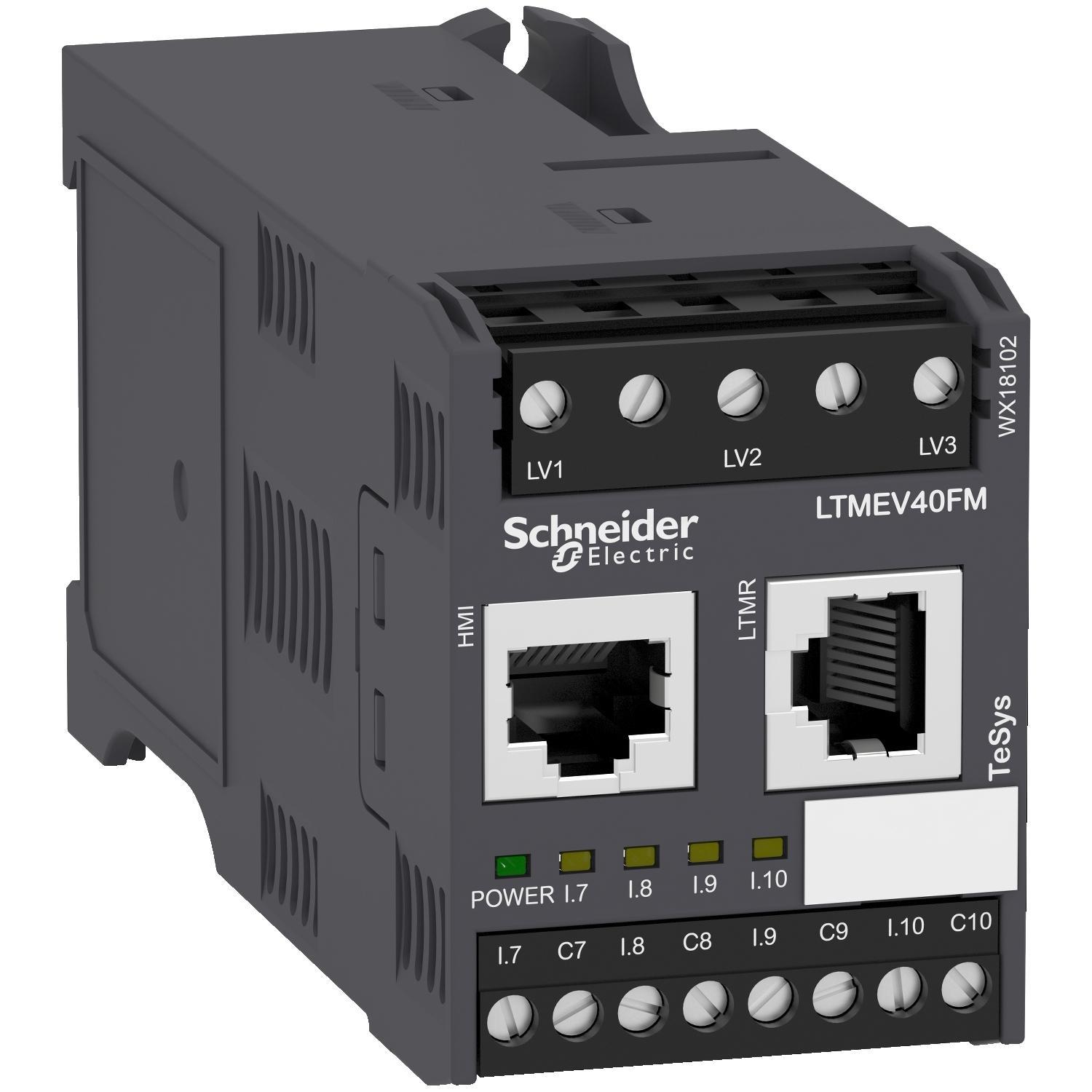

Schneider Electric LTMEV40FM LTME Extension Module, 3.1 mA at 100 V AC/7.5 mA at 240 V AC Inpu
Sku #38911940493
MFG #LTMEV40FM
Attributes
| Series: | LTME |
| Voltage Rating: | 100 to 240 V AC |
| Frequency Rating: | 2 Hz |
| Input Rating: | 3.1 mA at 100 V AC/7.5 mA at 240 V AC |
| Amperage Rating: | 3.1 to 7.5 mA |
| Enclosure Type: | IP20 |
- Can be controlled through its terminal strip, HMI or communication port
- The power monitoring capabilities make TeSys T a green motor management system
- Optional expansion module adds voltage, power and energy measurement
- Main controller provides current-based protection and monitoring, communication, control and statistics features
- For adding voltage measurement on the 3-Phases and 4 additional inputs
- Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2;fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4;fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4;conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6;control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5;communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5;control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
