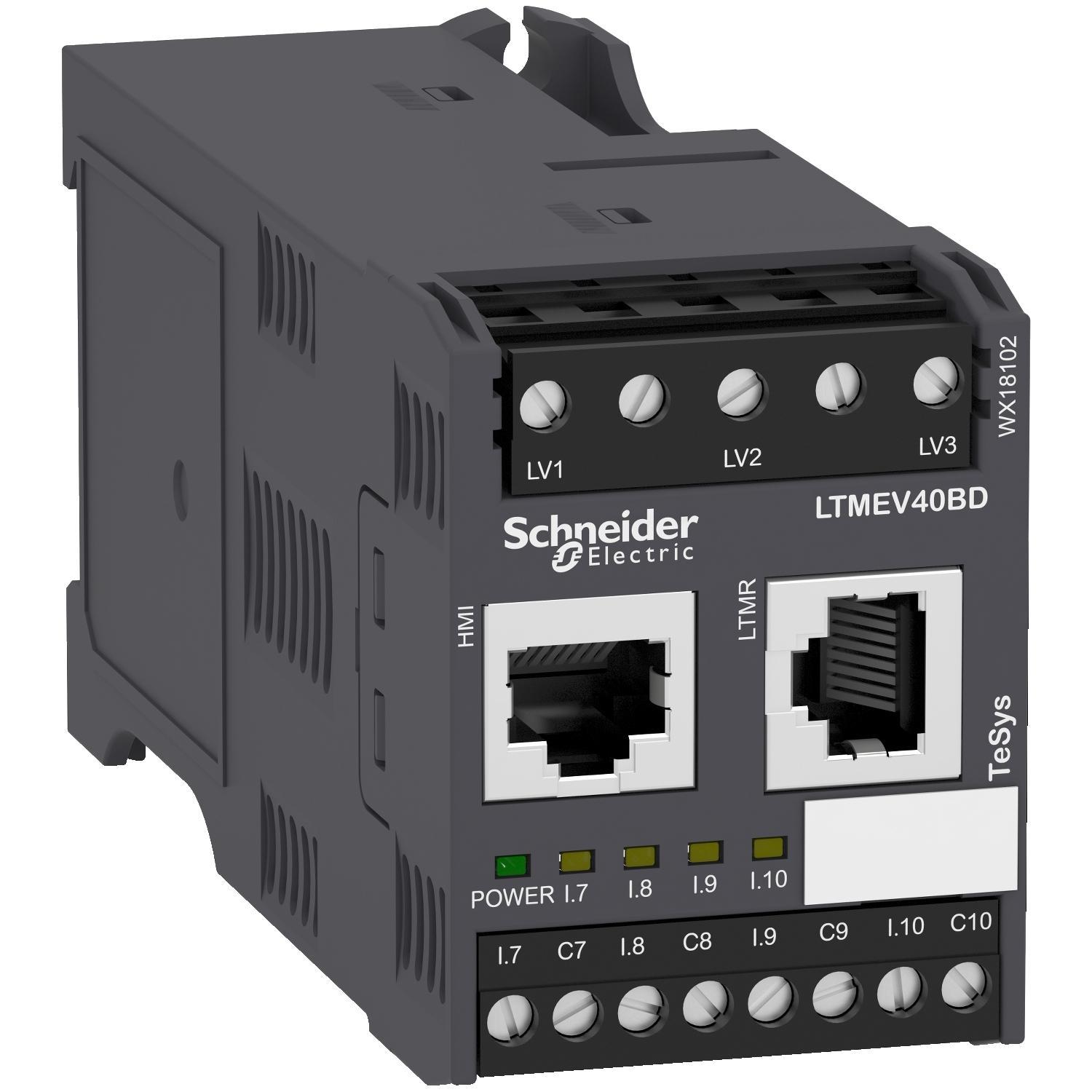

Schneider Electric Square D™ LTMEV40BD TeSys™ LTME Extension Module, 7 mA
Sku #38911940492
MFG #LTMEV40BD
Attributes
| Series: | TeSys™ LTME |
| Voltage Rating: | 24 V DC |
| Enclosure Type: | IP20/IP54 |
| Input Rating: | 7 mA |
| Electrical Connections: | Terminal Screw |
| Temperature Rating: | -20 to 60 deg C |
- Can be controlled through its terminal strip, HMI or communication port
- The power monitoring capabilities make TeSys T a green motor management system
- Optional expansion module adds voltage, power and energy measurement
- Main controller provides current-based protection and monitoring, communication, control and statistics features
- Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2;fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4;fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4;conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6;control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5;control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5;communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5;voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
- For equipment monitoring and control applications and voltage measurement on the 3 phases and 4 additional inputs
