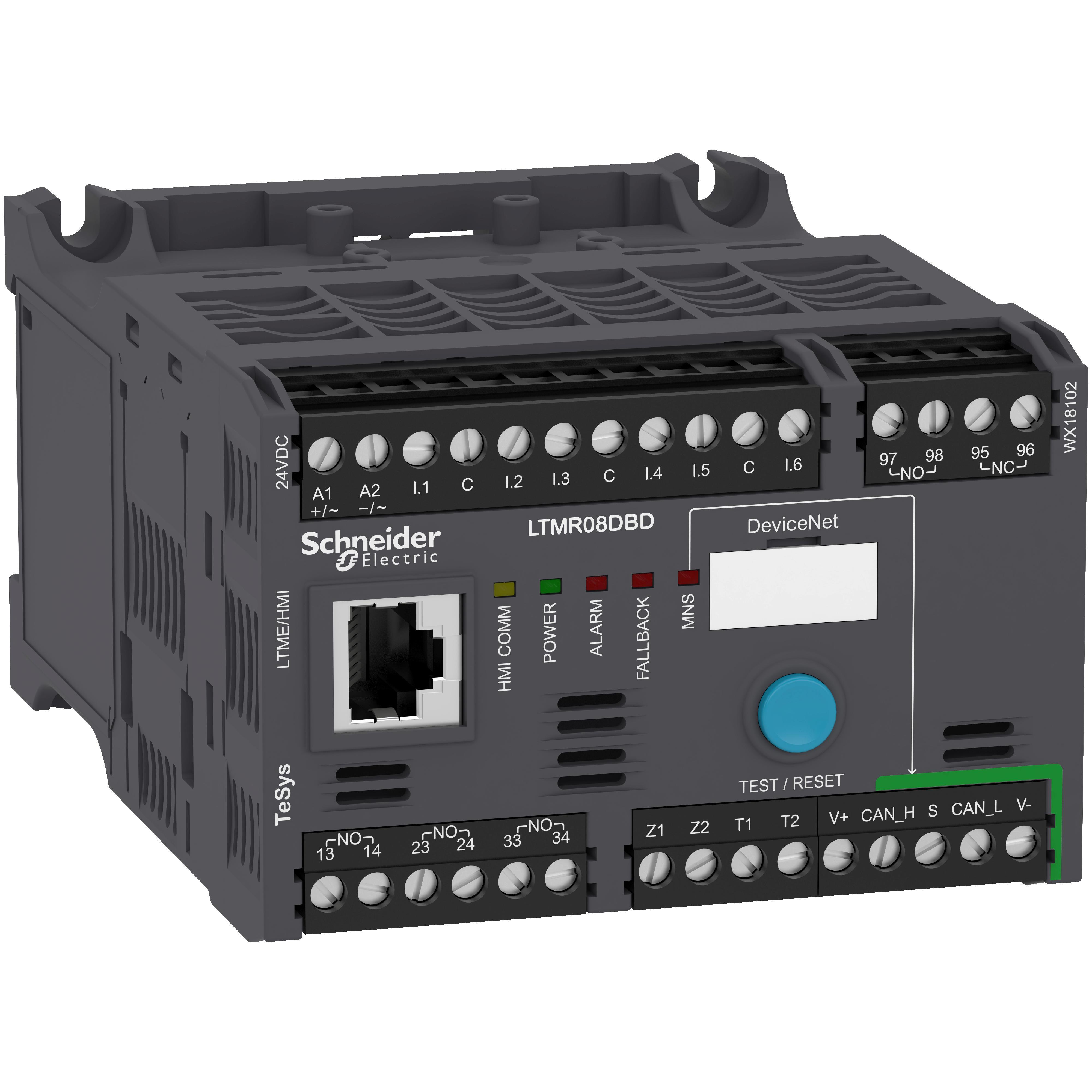

Schneider Electric TeSys™ LTMR08DBD Motor Controller With Devicenet Communication Port, 7 mA, 480 VA at 15 V AC at 2 A, 500000 Cycles Output/30 W at 13 V DC at 1.25 A, 500000 Cycles Output
Sku #38911940474
MFG #LTMR08DBD
Attributes
| Input Rating: | 7 mA |
| Voltage Rating: | 24 V DC |
| Contact Configuration: | 1NC-1NO |
| Output Rate: | 480 VA at 15 V AC at 2 A, 500000 Cycles Output/30 W at 13 V DC at 1.25 A, 500000 Cycles Output |
| Amperage Rating: | 0.4 to 8 A |
| Electrical Connections: | Control Circuit |
- RoHS Compliant|EN 60947-4-1|CSA C22.2 File No. 14|UL 508|IACS E10|IEC 60947-4-1|ABS Certified|ATEX Certified|BV Certified|CCC Certified|C-Tick.1 Certified|DNV Certified|GL Approved|KERI Approved|Lloyd's Register Certified|NOM Certified|RINA Approved|RMRoS Approved|EAC Certified|UL Listed|Green Premium|REACH Compliant|WEEE Compliant
- Compact, smart and easy-to-select motor management system
- Advanced protections, monitoring and pre-alarming
- Can be controlled through its terminal strip, HMI or communication port
- Optional expansion module adds voltage, power and energy measurement
- For equipment monitoring and control applications
