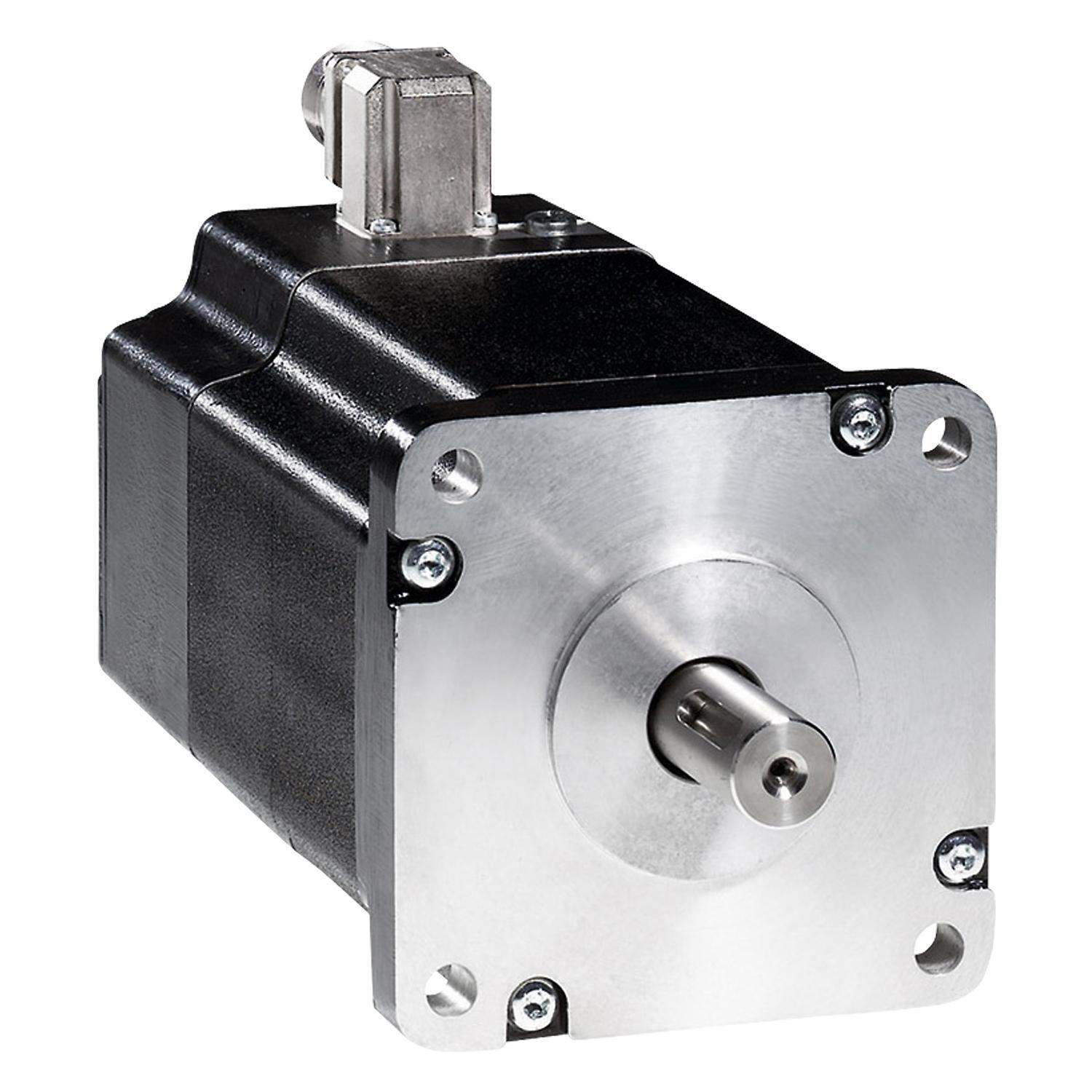

Schneider Electric Square D™ Lexium™ SD3 BRS3ACW851FCA Parallel Keyed Shaft End Stepper Motor With Brake, 3000 rpm Speed, 12 N-m Torque, 230 V AC/325 V DC, 4.1 A, 4.7 kHz, 3 ph
Sku #38911922422
MFG #BRS3ACW851FCA
Attributes
| Type: | Parallel Keyed Shaft End |
| Special Features: | Brushless Motors |
| Amperage Rating: | 4.1 A |
| Series: | BRS3 |
| Voltage Rating: | 230 V AC/325 V DC |
| Frequency Rating: | 4.7 kHz |
- EN/IEC 60034-5|ECCN: EAR99|EN/IEC 60034-5|IEC 60072-1|EN 50347|Green Premium™ Listed|IEC/EN 61800-5-2|REACH Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
- Printing, Paper, Packaging, Handling, Labelling, Textile Industry, Food and Beverages Applications
- Forget about encoder systems and commissioning software
- A compact drive and a high accuracy motor included in the package
- Reference values are preset and monitored by a higher level PLC or a Schneider Electric motion controller
- 3 ph Stepper Motors stand for precision, power and sturdiness
- In most cases a gearbox is not required due to the high torque
- The Lexium™ SD3 require very little space in the control cabinet
- The price is as compact as its dimensions
- Feature a 5 V and a 24 V pulse/direction interface or fieldbus interfaces (CANopen, CANopen Motionbus and Modbus or PROFIBUS DP)
- Safe torque off functionality prevents unintended machine starts as per IEC/EN 61800-5-2 for operator safety
- The connection to the positioning electronics is retained even when the safe torque Off function is active, re-homing is not necessary
