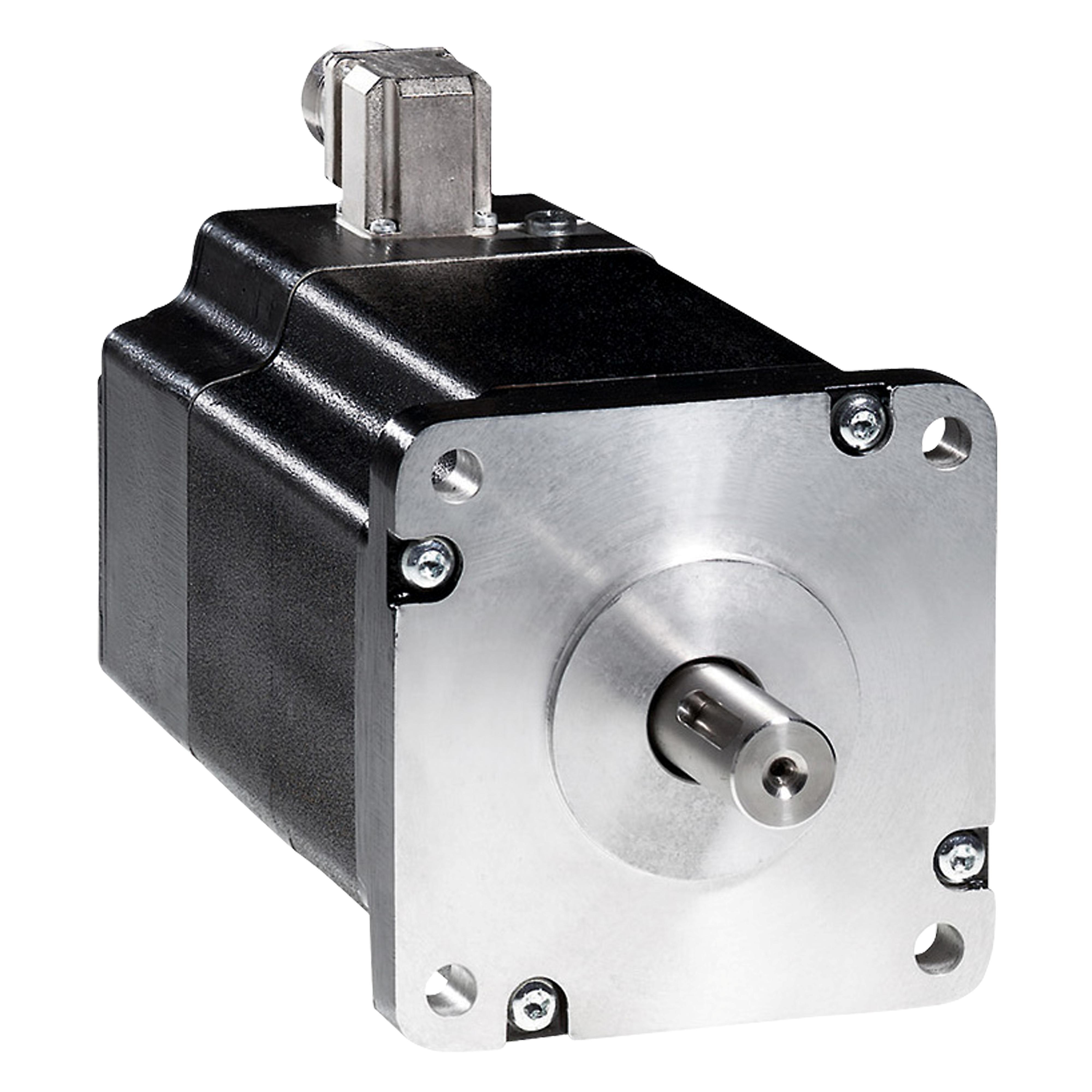

Schneider Electric BRS3ACW850ABB BRS Motion Control Motor, application type: 3-phase stepper motor, 3000 rpm speed, 13.5 N-m torque, 230 V AC, 325 V DC, 2.25 A, 5.3 kHz, 3 phase
Sku #38911922416
MFG #BRS3ACW850ABB
Attributes
| Type: | Motion Control Motor |
| Application Type: | 3-phase stepper motor |
| Amperage Rating: | 2.25 A |
| Series: | BRS |
| Voltage Rating: | 230 V AC, 325 V DC |
| Frequency Rating: | 5.3 kHz |
- Forget about encoder systems and commissioning software
- A compact drive and a high-accuracy motor included in the package
- Reference values are preset and monitored by a higher-level PLC or a Schneider Electric motion controller
- 3-phase stepper motors stand for precision, power and sturdiness
- The Lexium SD3 require very little space in the control cabinet
- Compact dimensions (H x W x D: 145 mm x 72 mm x 140 mm)
- The price is as compact as its dimensions
- Two different power classes, different interfaces and numerous other options and accessories
- Available up to 6.8 A
- Suitable for mains supply with 1-115 VAC and 230 VAC (50/60 Hz)
- Feature a 5 V and a 24 V pulse/direction interface or fieldbus interfaces (CANopen, CANopen Motionbus and Modbus or PROFIBUS DP)
- SD3 also available with rotation monitoring (SD3 28 has it on board)
- Safe Torque Off functionality prevents unintended machine starts as per IEC/EN 61800-5-2 for operator safety
- The connection to the positioning electronics is retained even when the Safe Torque Off function is active
- Re-homing is not necessary
- 4.33 in (110 mm) motor flange size
- 2.20 in (56 mm) centring collar diameter
- 0.12 in (3 mm) centring collar depth
- 4 number of mounting holes
- EN 50347IEC 60072-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
